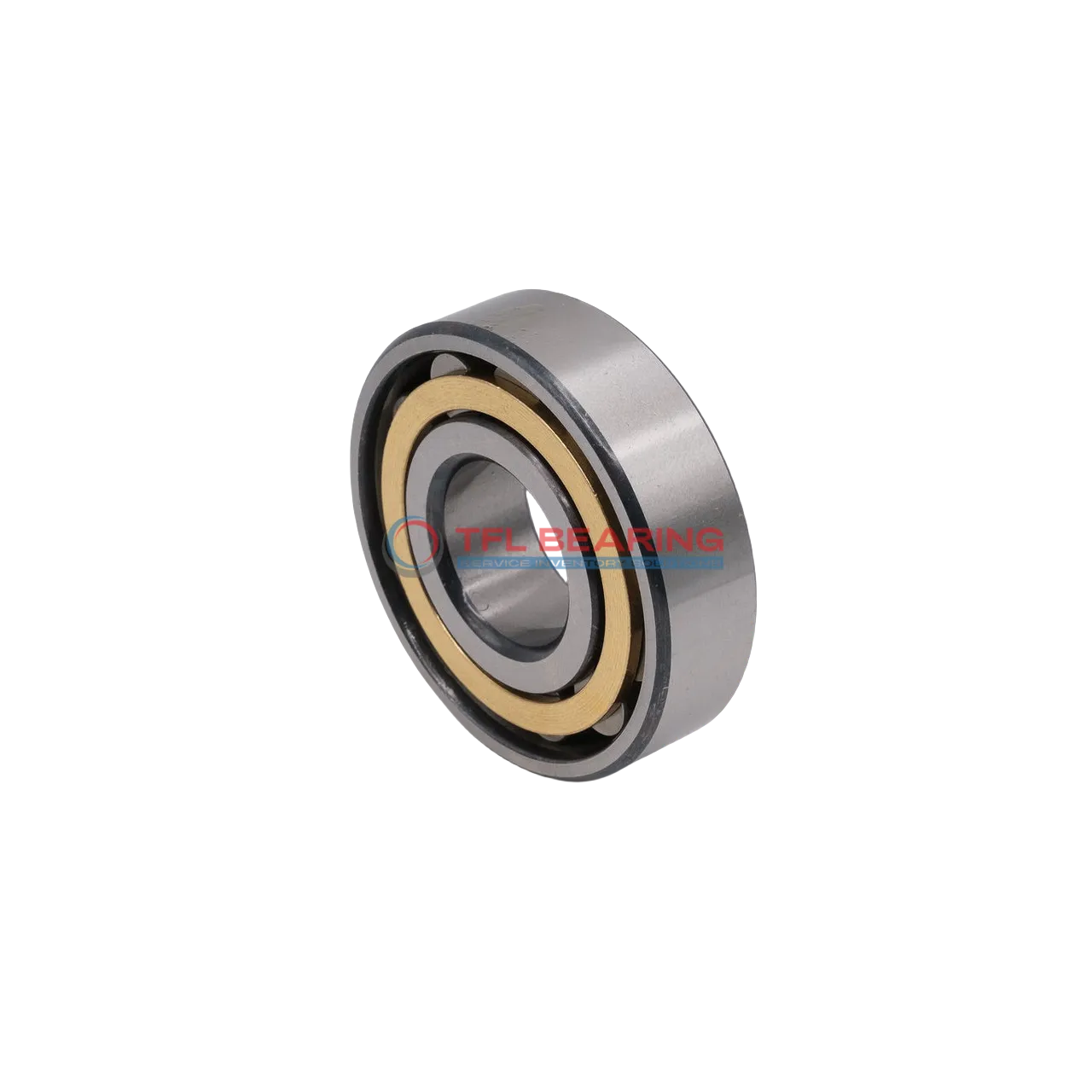

Single Row Cylindrical Roller Bearings With Inner Ring 316011

The 316011 is a single-row cylindrical roller bearing with a 440mm bore and 540mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 65700 lbf and works well with grease or oil lubrication.

Its brass cage keeps rollers centred for smooth operation, while the open design allows easy maintenance. The bearing operates reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or large machinery where radial and axial loads are present.

Weighing 18.5kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 316011
Brand TFL
Interchangeable SKF
Bore Dia 440 mm
Bore Dia Tolerance -0.045mm to 0
Outer Dia 540 mm
Outer Dia Tolerance -0.05mm to 0
Width 40 mm
Width Tolerance -0.12mm to 0
Shoulder Dia Of Inner Ring 479 mm
Raceway Diameter Of Outer Ring(E) 511 mm
Chamfer Dimension r1,2(min.) 2.1 mm
Permissible Axial Displacement(max.) 5.3 mm
System of Measurement Metric
Roller Bearing Type Cylindrical
For Load Direction Combined
Construction Single Row
Inner Ring Type With Inner Ring
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Brass cage, roller centred
Dynamic Radial Load 65700 lbf
Static Radial Load 137250 lbf
Lubrication Grease, Oil
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Weight 18.5 kg

Single Row Cylindrical Roller Bearings With Inner Ring 316011 dimension drawing

Download DWG Download PDF

Features

Performance Features of 316011 Bearing

316011 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 65,700 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

Application

Industrial Uses of 316011 Bearing
316011 Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even under demanding conditions.

Where Is 316011 Bearing Used?
You’ll often find 316011 Bearing in wind turbines and mining equipment, thanks to its ability to withstand combined loads and harsh environments. Its chrome steel construction offers excellent durability for long-term use.

Built for Heavy-Duty Use: 316011 Bearing
316011 Bearing is ideal for applications like crane hooks and construction equipment, where its single-row design provides reliable performance. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 316011 Bearing
In automotive systems, 316011 Bearing supports large drivetrain components, while in aerospace, it’s used in landing gear mechanisms. Its metric sizing makes it versatile for various high-load scenarios.

Perfect Fit for Automation: 316011 Bearing
316011 Bearing works well in automated production lines, particularly in robotic arms and conveyor systems. The grease or oil lubrication options ensure smooth operation in continuous-use settings.
