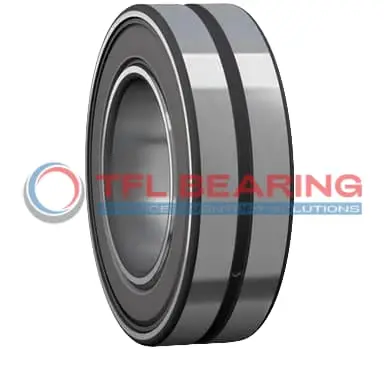

BS2-2212-2RS/VT143 Double Row Spherical Roller Bearing

BS2-2212-2RS/VT143 Double Row Spherical Roller Bearing

The BS2-2212-2RS/VT143 is a double-row spherical roller bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 35745 lbf and runs smoothly at speeds up to 2700 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing operates in temperatures from -30°C to 200°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 1.3kg, it’s built to last with a lubrication groove for easy maintenance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2212-2RS/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 110 x 34 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 34 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 69.7 mm
  • Shoulder/Recess Dia Of Outer Ring 101 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 37318 lbf
  • Max Speed 2700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.3 kg
  • Price （US$） 53.63

Features

Performance Features of BS2-2212-2RS/VT143 Bearing

BS2-2212-2RS/VT143 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 35745 lbf, ensuring reliable performance in heavy-duty applications.

The double seal design of BS2-2212-2RS/VT143 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 2700 rpm, it maintains efficiency even under demanding conditions.

BS2-2212-2RS/VT143 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Lubrication grooves in BS2-2212-2RS/VT143 Bearing facilitate smooth operation and reduce maintenance needs.
Its compact design, measuring 60 mm x 110 mm x 34 mm, fits seamlessly into various machinery setups.

Application

Industrial Uses of BS2-2212-2RS/VT143 Bearing
BS2-2212-2RS/VT143 Bearing is commonly used in heavy machinery like conveyor systems and crushers, where its double-row design handles combined loads efficiently. The double seals help keep contaminants out, extending its lifespan in dusty environments.

What Makes BS2-2212-2RS/VT143 Bearing a Preferred Choice?
In automotive applications, BS2-2212-2RS/VT143 Bearing supports components like wheel hubs and transmissions, thanks to its high radial load capacity. The chrome steel construction ensures durability even under demanding conditions.

Perfect Fit for Automation: BS2-2212-2RS/VT143 Bearing
BS2-2212-2RS/VT143 Bearing works well in robotic arms and automated assembly lines, where precision and reliability are key. Its spherical roller design accommodates misalignment, reducing wear over time.

Medical vs Industrial: Where BS2-2212-2RS/VT143 Bearing Excels
While BS2-2212-2RS/VT143 Bearing is robust enough for industrial gearboxes, its smooth operation also suits medical imaging devices. The temperature range up to 200°C makes it versatile for various settings.

Essential Roles of BS2-2212-2RS/VT143 Bearing
In wind turbines, BS2-2212-2RS/VT143 Bearing handles high radial loads and misalignment, ensuring consistent performance. The lubrication groove design simplifies maintenance, even in hard-to-reach areas.
