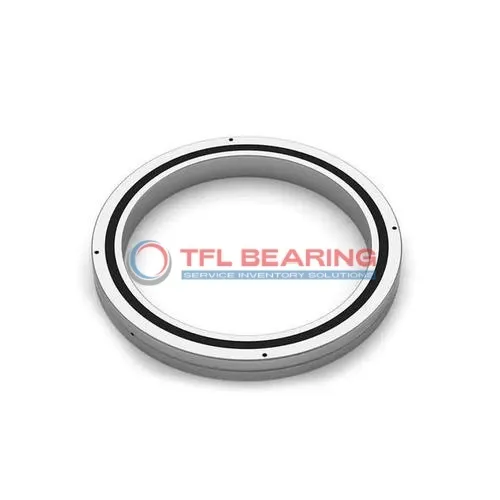

RB Crossed Roller Bearings RB10016UU

RB Crossed Roller Bearings RB10016UU

The RB10016UU is a crossed roller bearing measuring 100mm by 140mm by 16mm, designed for combined loads. Its steel construction offers durability, with a basic load rating of 31.7 kN for dynamic loads and 48.6 kN for static loads.

The double-seal design keeps contaminants out while retaining lubrication, making it suitable for press-fit applications. It operates smoothly in temperatures ranging from 0°F to 230°F, with an ABEC5 precision rating (higher grades available).

This bearing is ideal for precision equipment like robotics or machine tools where space is limited but high rigidity is needed. Compliant with RoHS and REACH standards, it weighs just 0.83kg for easy handling during installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RB10016UU
  • Brand TFL
  • size 100 mm x 140 mm x 16 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Bore Dia 100 mm
  • Outer Dia 140 mm
  • Width 16 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 109 mm
  • Shoulder Height Dh(min) 129 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 31.7 kN
  • Basic Load Rating Co 48.6 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.83 Kg

Features

Why Choose RB10016UU Bearing for Precision Tasks?

RB10016UU Bearing features a crossed roller design, ideal for handling combined loads with high precision.
Its steel construction ensures durability, while the double seal protects against contaminants.

With a basic load rating of 31.7 kN, RB10016UU Bearing performs reliably in demanding applications.
The ABEC5 rating (available in ABEC7/9) guarantees consistent accuracy for precision tasks.

RB10016UU Bearing operates in temperatures from 0 to 230°F, suitable for various environments.
The press-fit shaft mount simplifies installation, reducing setup time.

RB10016UU Bearing’s compact 16 mm width saves space without compromising performance.
Its 100 mm bore and 140 mm outer diameter provide a balanced design for stability.

Application

Industrial Uses of RB10016UU Bearing
RB10016UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, ensuring long service life in demanding workshop conditions.

Where Is RB10016UU Bearing Used?
You’ll find RB10016UU Bearing in robotics, particularly in articulated arms that require smooth, accurate movement. Its compact 16mm width makes it ideal for space-constrained applications without sacrificing load capacity.

Built for Heavy-Duty Use: RB10016UU Bearing
This bearing handles combined loads effortlessly, making it perfect for packaging machinery that undergoes constant start-stop cycles. The steel construction withstands industrial environments while maintaining ABEC5 precision.

Automotive vs Aerospace: Applications of RB10016UU Bearing
In automotive testing rigs, RB10016UU Bearing supports precise measurement equipment with minimal friction. For aerospace applications, its temperature resistance up to 230°F ensures reliability in avionics systems.

Perfect Fit for Automation: RB10016UU Bearing
RB10016UU Bearing shines in automated production lines, where its press-fit mounting simplifies installation. The pre-lubricated design reduces maintenance needs while delivering consistent performance in 24/7 operations.
