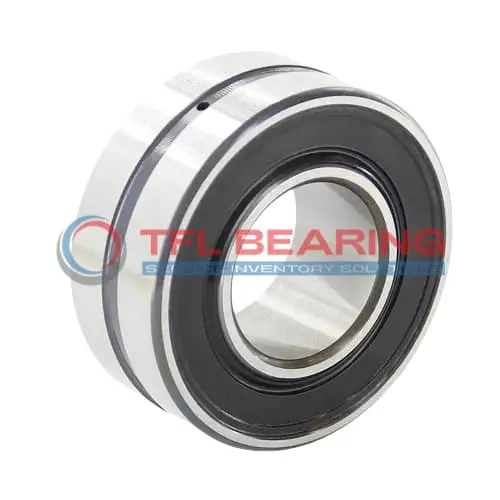

BS2-2210-2CS VT143 Double Row Spherical Roller Bearing

BS2-2210-2CS VT143 Double Row Spherical Roller Bearing

The BS2-2210-2CS VT143 is a double-row spherical roller bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 24055 lbf and runs smoothly at speeds up to 3200 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing operates well in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where combined loads are common.

Weighing 0.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2210-2CS VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 90 x 28 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 58.1 mm
  • Shoulder/Recess Dia Of Outer Ring 82.3 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24055 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 3200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.7 kg
  • Price （US$） 36

Features

Performance Features of BS2-2210-2CS VT143 Bearing

BS2-2210-2CS VT143 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24055 lbf, ensuring reliable performance in heavy-duty applications.

The double-seal design protects BS2-2210-2CS VT143 Bearing from dust and moisture, enhancing its durability.
With a maximum speed of 3200 rpm, it maintains smooth operation even under demanding conditions.

BS2-2210-2CS VT143 Bearing’s spherical roller design accommodates misalignment, reducing stress on the components.
The steel cage ensures proper roller alignment, minimising wear and extending service life.

Operating in temperatures from -30° to 200°C, BS2-2210-2CS VT143 Bearing performs well in varied environments.
Its lubrication groove and holes facilitate easy maintenance, keeping it running efficiently.

The CN radial clearance in BS2-2210-2CS VT143 Bearing ensures optimal performance for most industrial applications.
Weighing just 0.7 kg, it combines strength with a compact design for easy handling.

Application

Industrial Uses of BS2-2210-2CS VT143 Bearing
BS2-2210-2CS VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction ensures smooth operation even in misaligned conditions.

In automotive applications, BS2-2210-2CS VT143 Bearing supports components such as wheel hubs and transmissions, providing durability under high stress. Its double-seal design helps keep contaminants out, extending service life in demanding environments.

For automation systems, BS2-2210-2CS VT143 Bearing is ideal for robotic arms and conveyor belts, offering reliable performance with minimal maintenance. The chrome steel rollers and cage ensure long-term wear resistance in continuous operation.

BS2-2210-2CS VT143 Bearing also fits well in industrial fans and pumps, where its high-speed capability and temperature tolerance make it a dependable choice. The lubrication groove design simplifies maintenance, reducing downtime.

In construction equipment, BS2-2210-2CS VT143 Bearing excels in excavators and cranes, handling heavy loads with ease. The robust steel construction ensures stability even in harsh working conditions.
