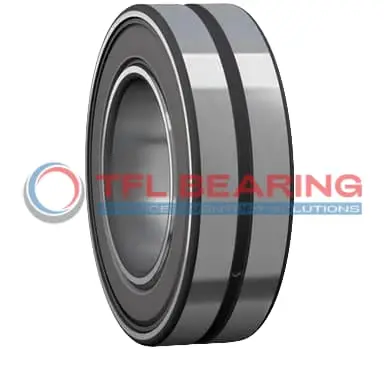

BS2-2207-RS Double Row Spherical Roller Bearing

BS2-2207-RS Double Row Spherical Roller Bearing

The BS2-2207-RS is a double-row spherical roller bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 19963 lbf and operates smoothly at speeds up to 4400 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or conveyor systems where combined loads are common.

Weighing 0.52kg, it offers a robust yet manageable solution for demanding environments. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BS2-2207-RS
  • Brand TFL
  • Interchangeable SKF
  • Size 35 x 72 x 28 mm
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 28 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 42.4 mm
  • Shoulder/Recess Dia Of Outer Ring 65.3 mm
  • Width Of Lubrication Groove 4.4 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 19963 lbf
  • Static Radial Load 19109 lbf
  • Max Speed 4400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.52 kg
  • Price （US$） 53.49

Features

How Does BS2-2207-RS Bearing Handle Combined Loads?

BS2-2207-RS Bearing features a double-row spherical roller design, ideal for handling both radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding conditions.

The dynamic radial load capacity of 19963 lbf makes BS2-2207-RS Bearing suitable for heavy-duty applications.
With a maximum speed of 4400 rpm, it delivers reliable performance without compromising efficiency.

BS2-2207-RS Bearing operates in temperatures from -30° to 200°C, adapting to various industrial environments.
Its steel cage maintains roller alignment, reducing friction and extending service life.

Application

Industrial Uses of BS2-2207-RS Bearing
BS2-2207-RS Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

What Makes BS2-2207-RS Bearing a Preferred Choice?
In automotive applications, BS2-2207-RS Bearing works well in gearboxes and drivetrains, thanks to its high radial load capacity. The steel cage adds extra strength, making it reliable for long-term use.

Built for Heavy-Duty Use: BS2-2207-RS Bearing
For automation equipment, BS2-2207-RS Bearing supports robotic arms and assembly lines, where precision and smooth operation are key. Its metric sizing fits seamlessly into European and Asian machinery designs.

Medical vs Industrial: Where BS2-2207-RS Bearing Excels
In medical devices like imaging equipment, BS2-2207-RS Bearing offers stable performance due to its high-speed capabilities. The wide temperature range also makes it suitable for various industrial heating systems.
