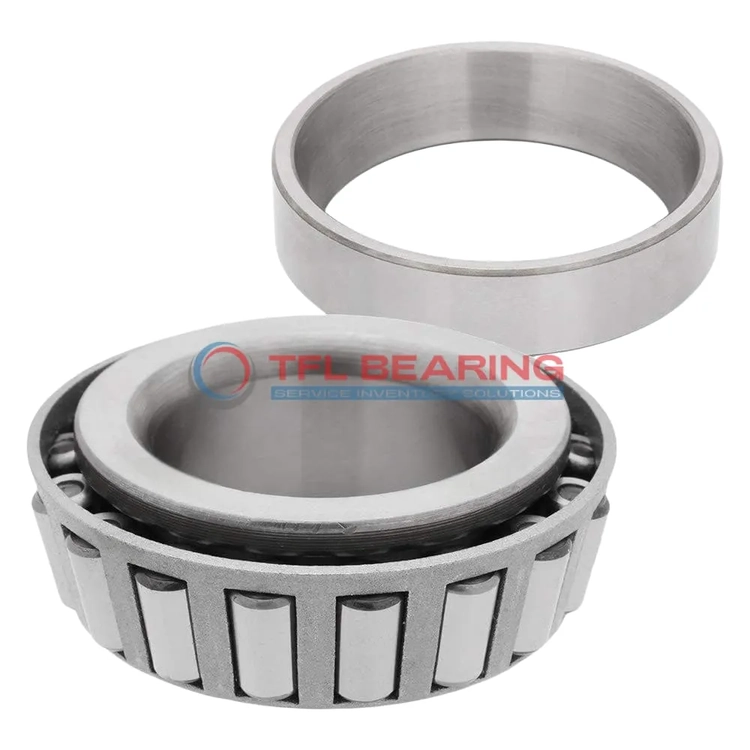

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14274A

TS (Single Row Tapered Roller Bearings) (Imperial) 14117A-14274A

The 14117A-14274A is a single-row tapered roller bearing with a 1.1811″ bore and 2.7148″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 12300 lbf radially and 2080 lbf thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in wheel hubs, gearboxes, or industrial machinery where combined loads are present.

Weighing just 0.8 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets environmental and safety requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 14117A-14274A
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1811" x 2.7148" x 0.7813"
  • Bore Dia 1.1811"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.7148"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.771"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7813"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.57"
  • Cone Backface Backing Diameter 1.69"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.02"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 14117A
  • Cup Part Number 14274A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 14000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12300 lbf
  • Static Radial Load 13900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 14117A-14274A Bearing

14117A-14274A Bearing is crafted with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures effective load distribution, enhancing durability and reducing wear.
With a standard radial clearance, it provides reliable operation in various industrial settings.

14117A-14274A Bearing operates within a temperature range of -30° to 110°C, ensuring consistent performance.
The steel cage maintains roller alignment, contributing to smooth and efficient rotation.

This bearing requires regular lubrication to maintain optimal performance and extend service life.
Its ABEC-1 rating ensures precision and reliability for general industrial use.

Application

Industrial Uses of 14117A-14274A Bearing
14117A-14274A Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 14117A-14274A Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 14117A-14274A Bearing offers smooth operation and easy maintenance due to its open design. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is 14117A-14274A Bearing Used?
You’ll often find 14117A-14274A Bearing in agricultural machinery, where its robust design handles dirt and debris without compromising performance. The standard radial clearance ensures consistent operation.

In mining equipment, 14117A-14274A Bearing’s ability to manage heavy radial and thrust loads makes it indispensable. The ABEC-1 rating provides a good balance of precision and cost-effectiveness.

Built for Heavy-Duty Use: 14117A-14274A Bearing
14117A-14274A Bearing excels in applications like gearboxes, where its tapered rollers distribute loads evenly. The chrome steel rollers and rings enhance longevity under stress.

For railway systems, 14117A-14274A Bearing’s reliability ensures smooth operation in freight and passenger cars. Its temperature range (-30° to 110°C) suits various climatic conditions.

Automotive vs Aerospace: Applications of 14117A-14274A Bearing
In automotive settings, 14117A-14274A Bearing supports drivetrain components, offering durability and ease of maintenance. The imperial measurements align with standard automotive designs.

For aerospace ground equipment, 14117A-14274A Bearing provides dependable performance in load-handling systems. Its compliance with RoHS and REACH standards ensures environmental safety.
