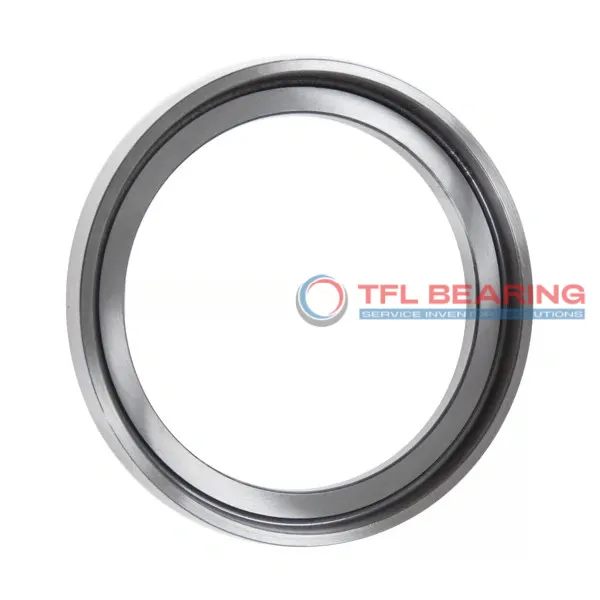

Angle Rings For Cylindrical Roller Bearings HJ 2318 EC

Angle Rings For Cylindrical Roller Bearings HJ 2318 EC

The HJ 2318 EC angle ring is designed for cylindrical roller bearings, with a 90mm bore and 124mm outer diameter. Made from sturdy chrome steel, it fits snugly with tight tolerances for precise alignment.
Its 12mm width on the inner ring side ensures stable contact, while the 22mm overall width provides ample support. The 3mm chamfer helps with easy installation and reduces stress points.
This angle ring works well in temperatures from -30°C to 110°C, making it suitable for various industrial environments. It’s interchangeable with SKF models, offering a reliable alternative for maintenance or replacements.
Weighing 0.66kg, it’s a robust component for heavy-duty applications like machinery or gear systems. Compliant with RoHS and REACH standards, it’s safe for widespread use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2318 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 124 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width Contacting Inner Ring Side Face 12 mm
  • Width 22 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.66 kg
Angle Rings For Cylindrical Roller Bearings HJ 2318 EC dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 2318 EC Bearing
HJ 2318 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its precise dimensions, with a bore diameter of 90 mm and outer diameter of 124 mm, ensure a perfect fit.
The chamfer length of 3 mm in the radial direction allows for smooth installation and operation.
With a temperature range of -30° to 110 °C, HJ 2318 EC Bearing performs reliably in diverse environments.
The width tolerance of -0.12mm to 0 ensures consistent performance and easy integration into machinery.
Its compliance with RoHS and REACH standards highlights its environmental and safety credentials.

Application

Industrial Uses of HJ 2318 EC Bearing
HJ 2318 EC Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
Where Is HJ 2318 EC Bearing Used?
In automotive applications, HJ 2318 EC Bearing fits well in gearboxes and drivetrains, providing reliable performance under constant stress. Its precise tolerances make it a trusted choice for maintaining alignment in rotating components.
Built for Heavy-Duty Use: HJ 2318 EC Bearing
For automation equipment, HJ 2318 EC Bearing supports robotic arms and assembly lines, where smooth rotation and load capacity are essential. The metric dimensions ensure compatibility with a variety of industrial setups.
Light-Duty vs Heavy-Duty: Best Uses for HJ 2318 EC Bearing
In consumer appliances like washing machines, HJ 2318 EC Bearing offers quiet operation and long service life. Its robust design also makes it suitable for heavier applications like construction equipment.
