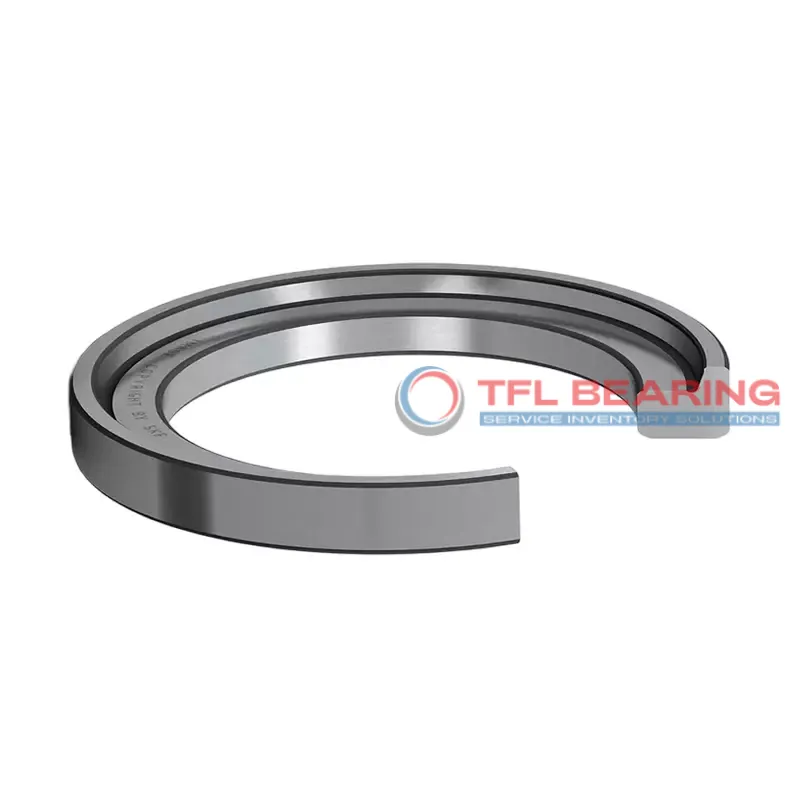

Angle Rings For Cylindrical Roller Bearings HJ 2317 EC

Angle Rings For Cylindrical Roller Bearings HJ 2317 EC

The HJ 2317 EC angle ring is designed for cylindrical roller bearings, with an 85mm bore and 117mm outer diameter. Made from sturdy chrome steel, it fits precisely with tolerances as tight as -0.02mm for the bore.
Its 12mm width on the inner ring side ensures a secure fit, while the 22mm overall width provides stability. The 3mm chamfer length helps with easy installation and alignment.
This angle ring operates reliably in temperatures ranging from -30°C to 110°C, making it suitable for various industrial environments. It’s interchangeable with SKF models, offering flexibility for replacements.
Weighing 0.59kg, it’s a robust yet manageable component for machinery maintenance. Compliant with RoHS and REACH standards, it’s safe for widespread use. Ideal for applications requiring precise bearing alignment, such as gearboxes or heavy-duty equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2317 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 117 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width Contacting Inner Ring Side Face 12 mm
  • Width 22 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.59 kg

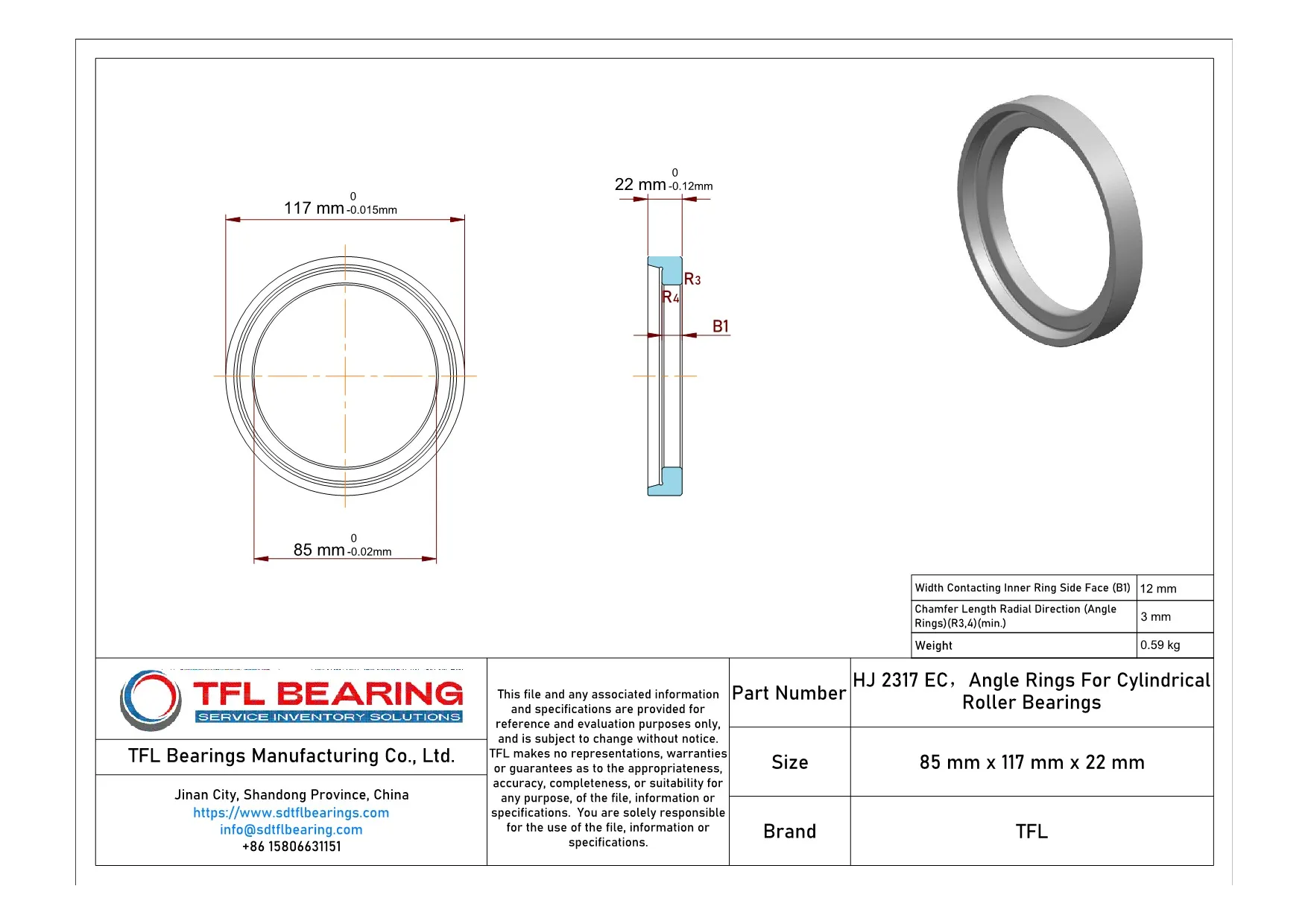

Angle Rings For Cylindrical Roller Bearings HJ 2317 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 2317 EC Bearing Engineered for Reliability?
HJ 2317 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise dimensions, with a bore diameter of 85 mm and outer diameter of 117 mm, ensure a perfect fit for cylindrical roller bearings.
The chamfer length of 3 mm in the radial direction reduces stress concentrations, enhancing longevity.
With a temperature range of -30° to 110 °C, HJ 2317 EC Bearing performs reliably in varied environments.
The design focuses on ease of installation, saving time and effort during assembly.
Its compliance with RoHS and REACH standards ensures environmental and safety considerations are met.
