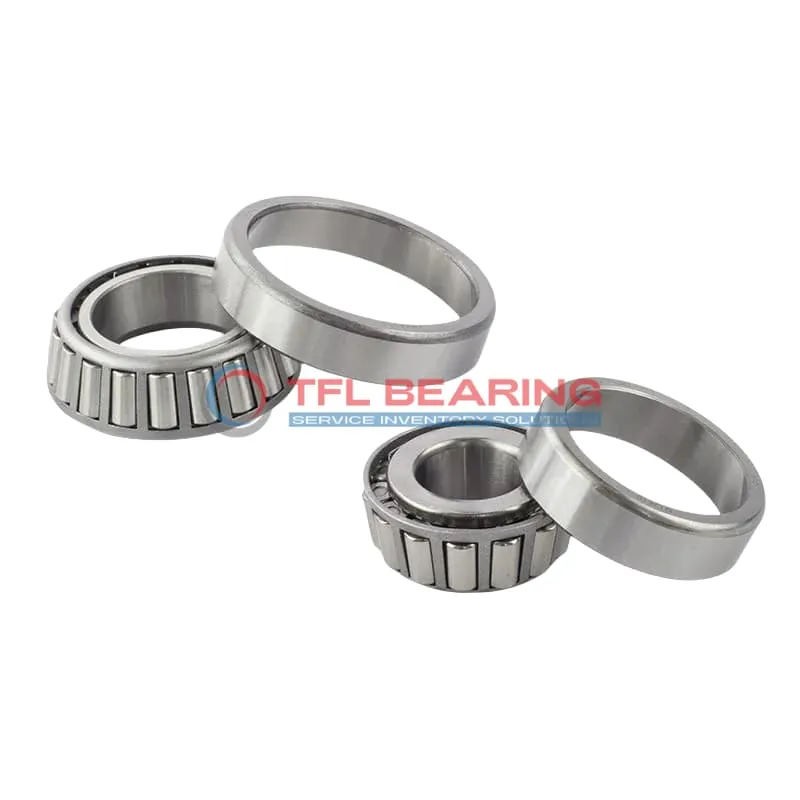

TS (Single Row Tapered Roller Bearings) (Imperial) EE470078X-470132

TS (Single Row Tapered Roller Bearings) (Imperial) EE470078X-470132

The EE470078X-470132 is a single-row tapered roller bearing with a 7″ bore and 13.25″ outer diameter, crafted from robust chrome steel. It manages combined loads up to 229,000 lbf radially and 37,100 lbf in thrust, suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or large equipment where combined loads are common.

Weighing 73.1 lbs, it’s built to handle substantial weight and stress. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number EE470078X-470132
  • Brand TFL
  • Interchangeable Timken
  • Size 7" x 13.25" x 3.5625"
  • Bore Dia 7"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 13.25"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 3.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.5"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 3.5625"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.380"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 8.93"
  • Cone Backface Backing Diameter 8.54"
  • Cup Frontface Backing Diameter 12.08"
  • Cup Backface Backing Diameter 11.73"
  • Cage Cone Frontface Clearance 0.01"
  • Cage Cone Backface Clearance 0.51"
  • Effective Center Location -0.86"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number EE470078X
  • Cup Part Number 470132
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 470000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 229000 lbf
  • Static Radial Load 354000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 59200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 37100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 73.100 lb

Features

Performance Features of EE470078X-470132 Bearing

EE470078X-470132 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 229,000 lbf, ensuring reliable performance in heavy-duty applications.

The single-row tapered roller design provides stability and efficient load distribution.
With a standard radial clearance, it accommodates various operational conditions.

EE470078X-470132 Bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.
The steel cage maintains roller alignment, reducing friction and extending service life.

Installation is straightforward due to the open seal design and precise tolerances.
Its ABEC-1 rating ensures consistent performance for industrial applications.

Application

Industrial Uses of EE470078X-470132 Bearing
EE470078X-470132 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is EE470078X-470132 Bearing Used?
You’ll often find EE470078X-470132 Bearing in agricultural machinery, such as tractors and harvesters, where its high load capacity supports smooth operation. Its inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: EE470078X-470132 Bearing
EE470078X-470132 Bearing excels in industrial gearboxes, providing reliable performance under both radial and thrust loads. The steel cage adds extra strength, making it suitable for long-term use.

Automotive vs Aerospace: Applications of EE470078X-470132 Bearing
In automotive applications, EE470078X-470132 Bearing works well in truck wheel hubs, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. The open design allows for easy lubrication.

Essential Roles of EE470078X-470132 Bearing
EE470078X-470132 Bearing is a go-to choice for conveyor systems in manufacturing plants, thanks to its ability to handle high dynamic loads. The standard radial clearance ensures consistent performance across various temperatures.
