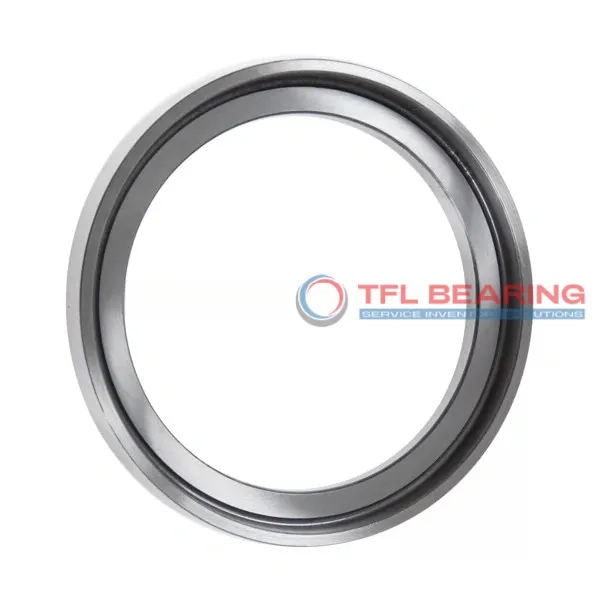

Angle Rings For Cylindrical Roller Bearings HJ 226 EC

Angle Rings For Cylindrical Roller Bearings HJ 226 EC

The HJ 226 EC angle ring is designed for cylindrical roller bearings, with a 130mm bore and 164.1mm outer diameter. Made from sturdy chrome steel, it suits temperatures from -30°C to 110°C.
Its 17mm width and 11mm contact side provide a secure fit, while the 3mm chamfer ensures easy installation. The ring is interchangeable with SKF models, offering flexibility for replacements.
Weighing 0.75kg, it’s a durable yet manageable component for industrial use. Compliant with RoHS and REACH standards, it’s a safe choice for machinery maintenance.
Ideal for applications requiring precise alignment in cylindrical roller bearings, such as heavy-duty gearboxes or conveyor systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 226 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 164.1 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width Contacting Inner Ring Side Face 11 mm
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.75 kg
Angle Rings For Cylindrical Roller Bearings HJ 226 EC dimension drawing
Download DWG Download PDF

Features

Core Advantages of HJ 226 EC Bearing
HJ 226 EC Bearing features chrome steel construction, offering durability and resistance to wear.
Its precise dimensions ensure a perfect fit, with a bore diameter of 130 mm and outer diameter of 164.1 mm.
The design includes a chamfer length of 3 mm, enhancing ease of installation.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.
HJ 226 EC Bearing’s width of 17 mm provides stability, making it suitable for heavy-duty applications.
Its compliance with RoHS and REACH standards ensures environmental safety.

Application

Industrial Uses of HJ 226 EC Bearing
HJ 226 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
Where Is HJ 226 EC Bearing Used?
You’ll often find HJ 226 EC Bearing in automotive applications like truck transmissions, where its precise tolerances and robust build support smooth power transfer. Its metric sizing makes it a versatile choice for various vehicle designs.
Built for Heavy-Duty Use: HJ 226 EC Bearing
HJ 226 EC Bearing excels in construction equipment, such as cranes and excavators, thanks to its ability to withstand heavy loads and harsh conditions. The 130 mm bore diameter is ideal for large shafts commonly found in these machines.
Automotive vs Aerospace: Applications of HJ 226 EC Bearing
In automotive settings, HJ 226 EC Bearing is trusted for axle assemblies and drivetrains, while its precision also makes it suitable for aerospace landing gear components. The temperature range of -30° to 110 °C ensures reliability in diverse climates.
Perfect Fit for Automation: HJ 226 EC Bearing
HJ 226 EC Bearing is a reliable choice for automated production lines, particularly in robotic arms and assembly systems. Its 17 mm width provides stability, while the chrome steel material resists wear over time.
