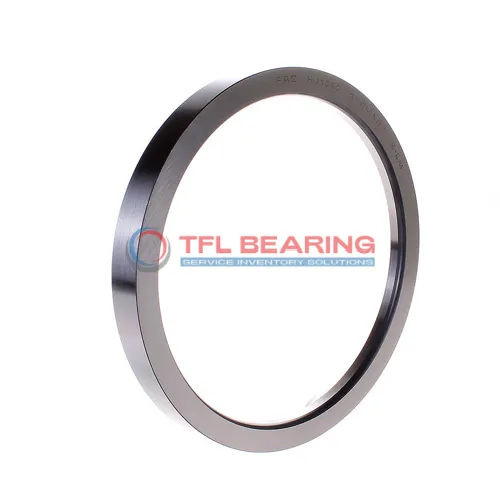

Angle Rings For Cylindrical Roller Bearings HJ 230 EC

Angle Rings For Cylindrical Roller Bearings HJ 230 EC

The HJ 230 EC angle ring is designed for cylindrical roller bearings, with a 150mm bore and 193.3mm outer diameter. Made from sturdy chrome steel, it suits temperatures from -30°C to 110°C.
Its 12mm width on the inner ring side ensures a secure fit, while the 19.5mm overall width provides stability. The chamfered edges (3mm) help with easy installation.
This angle ring is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty machinery where precise alignment is needed.
Weighing 1.25kg, it’s robust yet manageable. Compliant with RoHS and REACH standards for safe use in various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 230 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 193.3 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 12 mm
  • Width 19.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.25 kg
Angle Rings For Cylindrical Roller Bearings HJ 230 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 230 EC Bearing Engineered for Reliability?
HJ 230 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise bore and outer diameter tolerances ensure a perfect fit, enhancing operational stability.
The design includes a 12 mm width contacting the inner ring side face, providing secure alignment under load.
With a temperature range of -30° to 110°C, HJ 230 EC Bearing performs reliably in varied environments.
Weighing just 1.25 kg, it combines strength with ease of handling for efficient installation.

Application

Industrial Uses of HJ 230 EC Bearing
HJ 230 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles high radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.
In automotive applications, HJ 230 EC Bearing fits well in truck transmissions and axle systems, providing reliable performance under constant stress. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, HJ 230 EC Bearing’s precise tolerances and robust design support smooth operation in robotic arms and assembly lines. The wide temperature range also makes it suitable for diverse working conditions.
Where Is HJ 230 EC Bearing Used?
HJ 230 EC Bearing finds its place in wind turbines, where its ability to handle heavy loads and resist wear is crucial for long-term performance. The stainless steel material adds an extra layer of corrosion resistance.
In construction machinery, HJ 230 EC Bearing supports components like cranes and excavators, ensuring stability under extreme loads. Its easy maintenance and compatibility with SKF models make it a practical choice for repair and replacement.
Built for Heavy-Duty Use: HJ 230 EC Bearing
HJ 230 EC Bearing is ideal for mining equipment, where its sturdy design withstands harsh conditions and continuous operation. The precise width tolerance ensures a perfect fit in complex assemblies.
For agricultural machinery, HJ 230 EC Bearing’s reliability keeps tractors and harvesters running smoothly. Its chrome steel rollers provide the necessary strength to handle uneven loads and rough terrain.
Automotive vs Aerospace: Applications of HJ 230 EC Bearing
In automotive systems, HJ 230 EC Bearing is often used in heavy-duty trucks and buses, where its load capacity and durability are essential. The metric sizing ensures compatibility with a wide range of vehicles.
For aerospace applications, HJ 230 EC Bearing’s precision and material quality meet the stringent requirements of aircraft components. Its ability to perform in varied temperatures makes it suitable for both ground and flight conditions.
