Angle Rings For Cylindrical Roller Bearings HJ 2224 EC

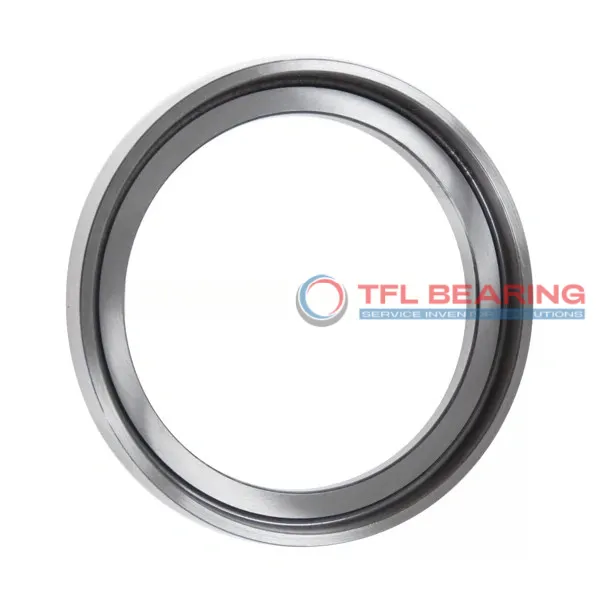

Angle Rings For Cylindrical Roller Bearings HJ 2224 EC

The HJ 2224 EC angle ring is designed for cylindrical roller bearings, with a 120mm bore and 153.45mm outer diameter. Made from sturdy chrome steel, it fits snugly with tight tolerances for precise alignment.
Its 11mm width on the inner ring side ensures stable contact, while the 20mm overall width provides ample support. The chamfered edges (min. 2.1mm) help with smooth installation.
This ring works in temperatures from -30°C to 110°C, making it suitable for various industrial environments. It’s interchangeable with SKF models, offering flexibility for replacements.
Weighing 0.73kg, it’s a durable yet manageable component for machinery maintenance. Compliant with RoHS and REACH standards, it’s safe for regular use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 2224 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 153.45 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width Contacting Inner Ring Side Face 11 mm
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.73 kg

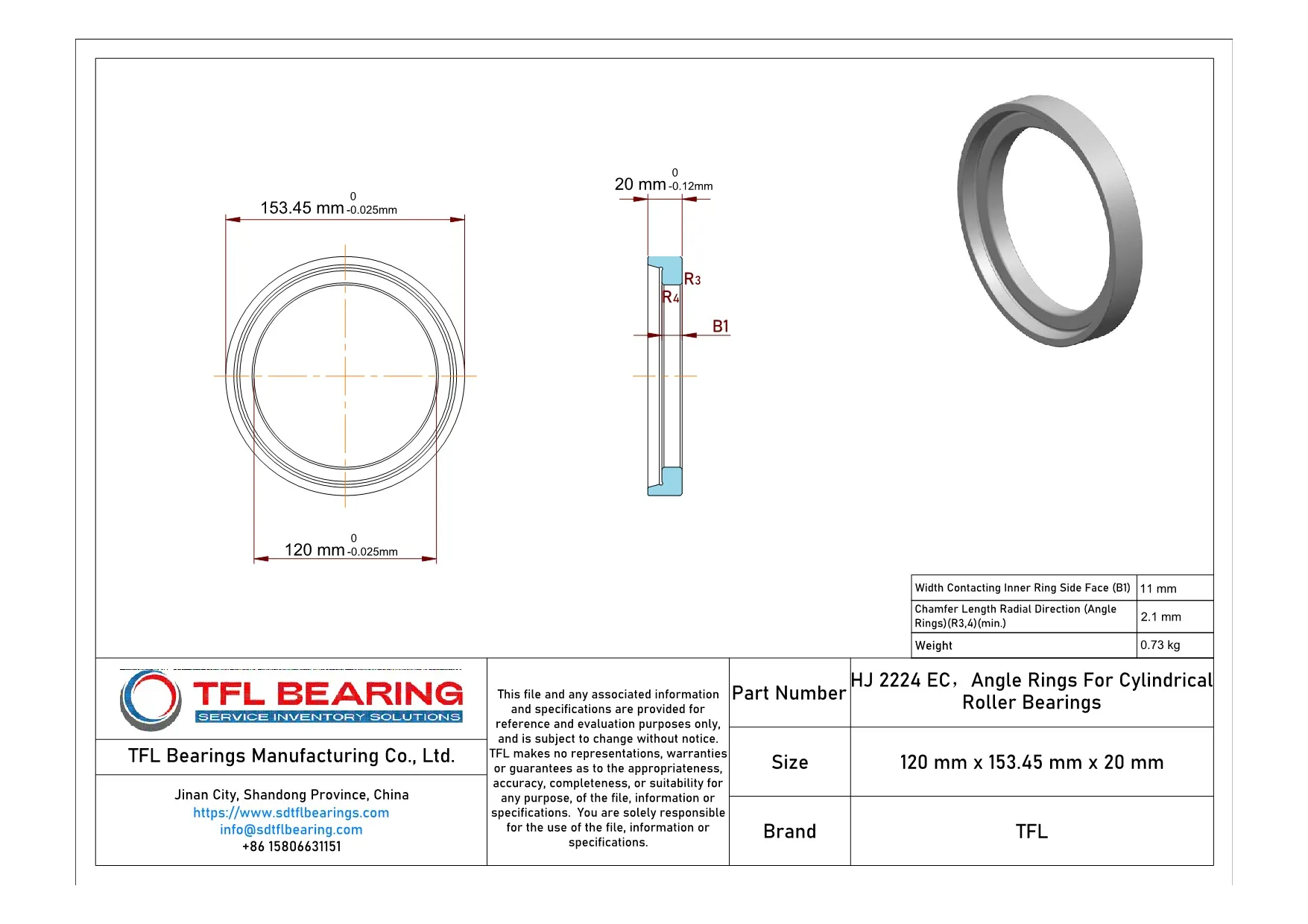

Angle Rings For Cylindrical Roller Bearings HJ 2224 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 2224 EC Bearing Engineered for Reliability?
HJ 2224 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise bore and outer diameter tolerances ensure a perfect fit, enhancing operational stability.
The design includes a 20 mm width, providing ample support for cylindrical roller bearings.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.
HJ 2224 EC Bearing’s chamfer length of 2.1 mm minimises stress concentrations, prolonging service life.
Its compliance with RoHS and REACH standards ensures environmental and safety adherence.

Application

Industrial Uses of HJ 2224 EC Bearing
HJ 2224 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles radial loads efficiently. The chrome steel material ensures long-lasting performance even in demanding conditions.
In automotive applications, HJ 2224 EC Bearing fits well in truck transmissions and axle systems, providing reliable support under high stress. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, HJ 2224 EC Bearing’s precise tolerances and durability make it suitable for robotic arms and assembly lines. The robust construction minimizes wear, ensuring smooth operation over time.
Medical imaging devices also benefit from HJ 2224 EC Bearing’s stability and precision. Its consistent performance is key in maintaining accurate readings in diagnostic equipment.
