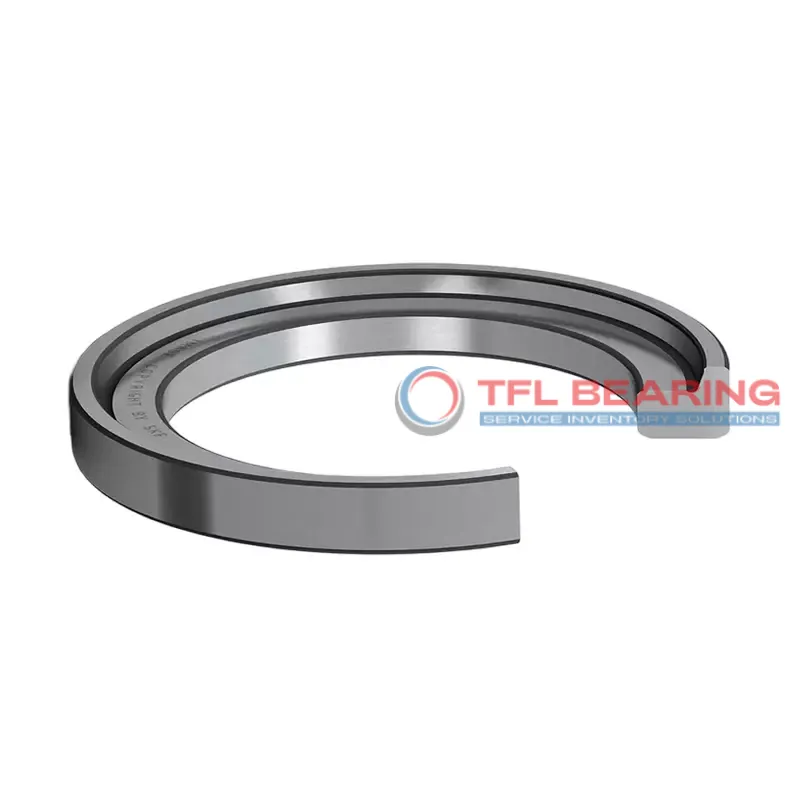

Angle Rings For Cylindrical Roller Bearings HJ 214 EC

Angle Rings For Cylindrical Roller Bearings HJ 214 EC

The HJ 214 EC angle ring is designed for cylindrical roller bearings, with a 70mm bore and 89.4mm outer diameter. Made from sturdy chrome steel, it operates reliably in temperatures from -30°C to 110°C.
Its 7mm width on the inner ring side ensures a secure fit, while the 11mm overall width provides stability. The chamfered edges (1.5mm) help with easy installation.
This angle ring is interchangeable with SKF models, making it a practical choice for replacements. It’s commonly used in industrial machinery where precise bearing alignment is needed.
Weighing just 0.15kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 214 EC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 89.4 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width Contacting Inner Ring Side Face 7 mm
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.15 kg
Angle Rings For Cylindrical Roller Bearings HJ 214 EC dimension drawing
Download DWG Download PDF

Features

How Is HJ 214 EC Bearing Engineered for Reliability?
HJ 214 EC Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its precise bore diameter of 70 mm ensures a secure fit, while the outer diameter of 89.4 mm provides stability.
The chamfer length of 1.5 mm minimises stress concentrations, enhancing the bearing’s longevity.
With a temperature range of -30° to 110 °C, HJ 214 EC Bearing performs reliably in varied environments.
The 11 mm width and 7 mm contacting side face width allow for compact yet robust design.
This makes HJ 214 EC Bearing suitable for applications where space and reliability are key.

Application

Industrial Uses of HJ 214 EC Bearing
HJ 214 EC Bearing is commonly used in heavy machinery, such as industrial gearboxes and large conveyor systems, where its cylindrical roller design handles radial loads efficiently. The chrome steel construction ensures durability in demanding environments.
In automotive applications, HJ 214 EC Bearing fits well in wheel hubs and drivetrain components, providing reliable performance under high stress. Its metric sizing makes it a versatile choice for various vehicle models.
For automation systems, HJ 214 EC Bearing supports robotic arms and precision equipment, where its stable operation is essential. The narrow width design allows for compact installations without compromising strength.
Medical imaging devices also benefit from HJ 214 EC Bearing’s smooth rotation and low maintenance needs. The compliant materials ensure it meets industry standards for safety and reliability.
