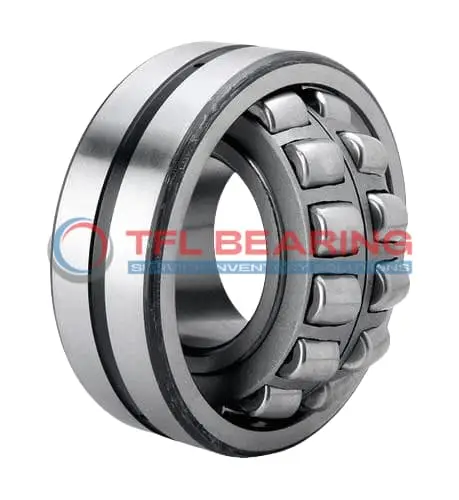

23052 CC/W509 Double Row Spherical Roller Bearing

23052 CC/W509 Double Row Spherical Roller Bearing

The 23052 CC/W509 is a double-row spherical roller bearing with a 260mm bore and 400mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 376555 lbf and operates smoothly at speeds up to 1700 RPM.

Its open design requires lubrication, with a 9mm hole and 16.7mm groove for easy maintenance. The steel cage and spherical rollers ensure durability and reliable performance.

This bearing suits high-load applications like industrial gearboxes or heavy machinery. It works in temperatures from -30°C to 200°C, making it versatile for various environments.

Weighing 46.5kg, it’s built for heavy-duty use. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23052 CC/W509
  • Brand TFL
  • Interchangeable SKF
  • Size 260 x 400 x 104 mm
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 104 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 295 mm
  • Shoulder/Recess Dia Of Outer Ring 360 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 376555 lbf
  • Static Radial Load 573263 lbf
  • Max Speed 1700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 46.5 kg

Features

How Does 23052 CC/W509 Bearing Handle Heavy Loads?

23052 CC/W509 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 376555 lbf, ensuring dependable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and enhancing durability.
With a maximum speed of 1700 rpm, it delivers both strength and efficiency.

What Makes 23052 CC/W509 Bearing Suitable for High-Temperature Applications?

23052 CC/W509 Bearing operates effectively in temperatures ranging from -30° to 200°C.
Its chrome steel construction ensures stability and performance even in demanding thermal conditions.
The open design allows for easy lubrication, maintaining smooth operation.
This makes it ideal for industrial applications where temperature variations are common.

Engineered for Precision: 23052 CC/W509 Bearing

23052 CC/W509 Bearing features a double-row spherical roller design for precise load distribution.
The cylindrical bore ensures a secure fit, reducing misalignment risks.
Its radial clearance of CN provides optimal performance under varying loads.
This design is perfect for applications requiring high precision and reliability.

Steel vs Ceramic Bearings: Strengths of 23052 CC/W509 Bearing

23052 CC/W509 Bearing uses chrome steel for both rings and rollers, ensuring high strength and durability.
The steel cage further enhances its load-bearing capacity and longevity.
Unlike ceramic bearings, it offers better cost-efficiency for heavy industrial use.
Its design is tailored for applications where reliability and performance are critical.

Application

Industrial Uses of 23052 CC/W509 Bearing
The 23052 CC/W509 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. Its chrome steel construction ensures durability in demanding industrial environments.

Where Is 23052 CC/W509 Bearing Used?
You’ll often find 23052 CC/W509 Bearing in mining equipment, where its high dynamic radial load capacity supports heavy-duty operations. The spherical roller design also accommodates misalignment, making it versatile for rough conditions.

Built for Heavy-Duty Use: 23052 CC/W509 Bearing
23052 CC/W509 Bearing excels in paper mill machinery, thanks to its robust steel cage and lubrication groove for extended service life. The wide temperature range allows it to perform reliably in both hot and cold settings.

Automotive vs Aerospace: Applications of 23052 CC/W509 Bearing
In automotive applications, 23052 CC/W509 Bearing supports large drivetrain components, while in aerospace, its precision fits auxiliary systems. The metric sizing ensures compatibility across various equipment types.

Essential Roles of 23052 CC/W509 Bearing
23052 CC/W509 Bearing is vital in wind turbines, where its high static radial load capacity ensures stability under varying wind conditions. The open seal design simplifies maintenance in remote installations.
