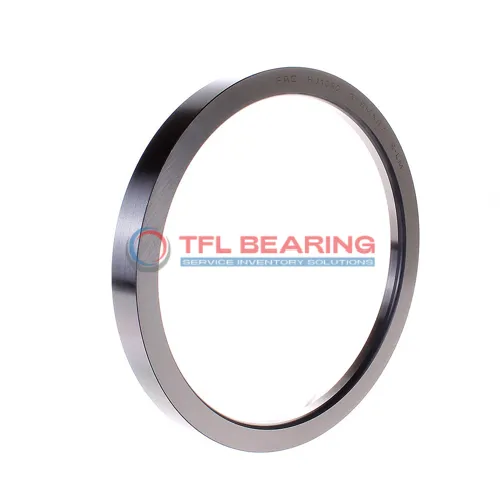

Angle Rings For Cylindrical Roller Bearings HJ 1036

Angle Rings For Cylindrical Roller Bearings HJ 1036

The HJ 1036 angle ring is designed for cylindrical roller bearings, with a 180mm bore and 215mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles temperatures from -30°C to 110°C.

Its 12mm width on the inner ring side ensures a secure fit, while the 22.5mm overall width provides stability. The chamfered edges (min. 2.1mm) make installation easier.

This angle ring is interchangeable with SKF models, offering a reliable alternative for replacements. It’s ideal for heavy-duty machinery where precise alignment is needed.

Weighing 1.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 1036
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width Contacting Inner Ring Side Face 12 mm
  • Width 22.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.25 kg
Angle Rings For Cylindrical Roller Bearings HJ 1036 dimension drawing
Download DWG Download PDF

Features

How Is HJ 1036 Bearing Engineered for Reliability?
HJ 1036 Bearing is crafted from high-quality chrome steel, ensuring durability and resistance to wear.
Its precise bore and outer diameter tolerances (-0.03mm to 0) guarantee a perfect fit for cylindrical roller bearings.
The design includes a 12 mm width contacting the inner ring side face, enhancing stability under load.
With a temperature range of -30° to 110°C, HJ 1036 Bearing performs reliably in varied conditions.
The chamfer length of 2.1 mm in the radial direction minimises stress concentration, prolonging service life.
Weighing just 1.25 kg, it offers a balance of strength and ease of handling.

Application

Industrial Uses of HJ 1036 Bearing
HJ 1036 Bearing is commonly used in heavy machinery, such as industrial presses and large conveyor systems, where its robust design handles significant radial loads. The chrome steel material ensures long-lasting performance even in demanding environments.
Where Is HJ 1036 Bearing Used?
In automotive manufacturing, HJ 1036 Bearing fits well in gearboxes and drivetrains, providing stability under high torque conditions. Its precise tolerances make it a reliable choice for maintaining alignment in critical components.
Built for Heavy-Duty Use: HJ 1036 Bearing
For wind turbines and mining equipment, HJ 1036 Bearing’s durability stands out, especially in applications with continuous operation. The metric dimensions allow for easy integration with various industrial systems.
Automotive vs Aerospace: Applications of HJ 1036 Bearing
While HJ 1036 Bearing excels in automotive transmissions, it’s also suitable for aerospace landing gear mechanisms, where precision and strength are paramount. The wide temperature range ensures performance in diverse conditions.
Perfect Fit for Automation: HJ 1036 Bearing
In robotic assembly lines, HJ 1036 Bearing’s cylindrical roller design supports smooth, high-precision movement. Its compatibility with SKF models makes it a versatile option for maintenance and upgrades.
