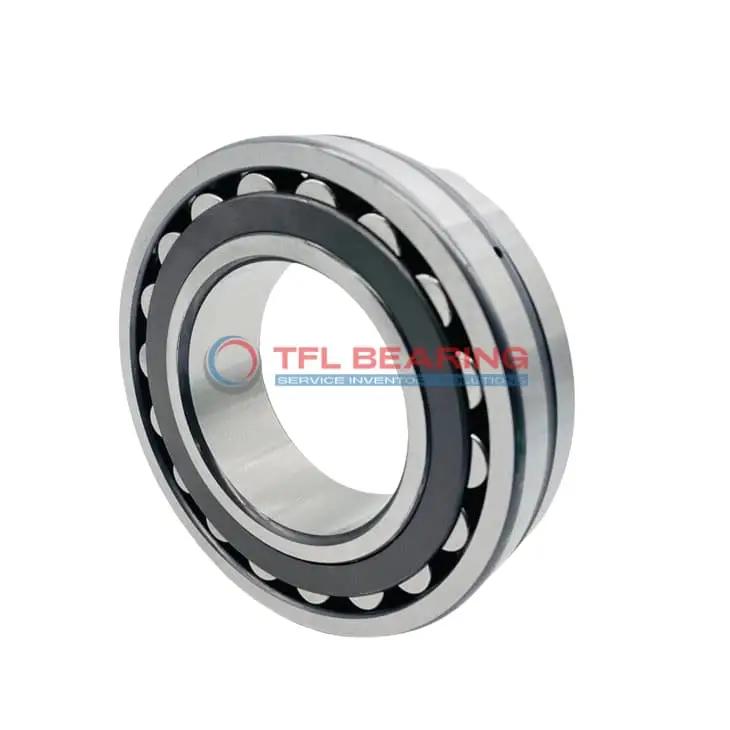

22316 CKJ C3 W33 Double Row Spherical Roller Bearing

The 22316 CKJ C3 W33 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 116001 lbf and runs smoothly at speeds up to 4000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The bearing requires lubrication and operates in temperatures from -30°C to 200°C.

This model features a tapered bore (1:12 ratio) for secure fitting and includes lubrication holes for easy maintenance. Ideal for heavy-duty applications like industrial gearboxes or mining equipment.

Weighing 6.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, making it a reliable choice for various industries.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 22316 CKJ C3 W33
Brand TFL
Interchangeable SKF
Size 80 x 170 x 58 mm
Bore Dia 80 mm
Bore Dia Tolerance +0.03mm to 0
Outer Dia 170 mm
Outer Dia Tolerance -0.025mm to 0
Width 58 mm
Width Tolerance -0.06mm to 0
Shoulder Dia Of Inner Ring 98.3 mm
Shoulder/Recess Dia Of Outer Ring 143 mm
Width Of Lubrication Groove 8.3 mm
Diameter Of Lubrication Hole 4.5 mm
Chamfer Dimension min.2.1 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Taper 1:12
For Load Direction Combined
Construction Double Row
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 116001 lbf
Static Radial Load 119149 lbf
Max Speed 4000 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance C3
RoHs Compliant
REACH Compliant
Weight 6.25 kg
Price （US$） 91.08

Features

How Is 22316 CKJ C3 W33 Bearing Engineered for Reliability?

22316 CKJ C3 W33 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability, even under high dynamic radial loads of up to 116001 lbf.

The tapered bore design enhances stability, while the lubrication groove simplifies maintenance.
With a maximum speed of 4000 rpm, it delivers consistent performance in demanding conditions.

22316 CKJ C3 W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance provides flexibility, making it suitable for various industrial applications.

Application

Industrial Uses of 22316 CKJ C3 W33 Bearing
22316 CKJ C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
The spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Where Is 22316 CKJ C3 W33 Bearing Used?
You’ll often find 22316 CKJ C3 W33 Bearing in conveyor systems and gearboxes, where its high dynamic load capacity ensures reliable performance.
The C3 radial clearance and W33 lubrication groove help maintain smooth operation even under heavy loads.

Built for Heavy-Duty Use: 22316 CKJ C3 W33 Bearing
22316 CKJ C3 W33 Bearing excels in mining equipment, thanks to its chrome steel rollers and robust steel cage.
Its tapered bore design simplifies installation, while the wide temperature range suits harsh operating conditions.

Automotive vs Aerospace: Applications of 22316 CKJ C3 W33 Bearing
In automotive applications, 22316 CKJ C3 W33 Bearing supports drivetrain components like differentials, offering durability under combined loads.
For aerospace, its precision and high-speed capability make it suitable for auxiliary machinery, though it’s more common in ground-based industrial gear.
