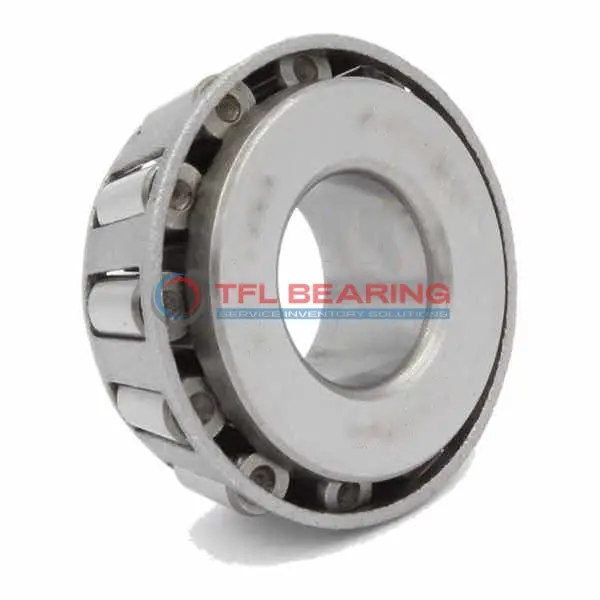

864 Single Cones (Imperial)

864 Single Cones (Imperial)

The 864 single cones are imperial-sized tapered roller bearings with a 3.75″ bore, designed for combined loads. Made from durable chrome steel, they handle dynamic radial loads up to 103,000 lbf and static loads up to 142,000 lbf.

Their single-row construction and open design make them easy to maintain, while the steel cage ensures reliable performance. The bearings operate smoothly in temperatures ranging from -30°C to 110°C.

These cones are interchangeable with Timken bearings, offering a practical replacement option. Ideal for heavy-duty applications like truck axles or industrial machinery where robust performance is needed.

Compliant with RoHS and REACH standards, they provide a safe and dependable solution for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 864
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 864-852 , 864-854 , 864-854-B , 864-854V , 864-854X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 855
  • Bore Dia 3.75"
  • Bore Dia Tolerance +0.001" to 0
  • Cone Width 2.265"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.31"
  • Cone Frontface Backing Diameter 4.25"
  • Cone Backface Backing Diameter 4.84"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.6"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 103000 lbf
  • Static Radial Load 142000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 26700 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 179000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 15300 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 46400 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 864 Bearing

864 Bearing is crafted with chrome steel rings and a steel cage, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 103,000 lbf, making it suitable for heavy-duty applications.
The tapered roller design ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Does 864 Bearing Reduce Friction?

864 Bearing’s tapered roller design minimises friction, ensuring smooth rotation under heavy loads.
The chrome steel construction enhances durability while maintaining efficient performance.
Its effective centre location of -0.6″ helps in precise alignment, reducing wear.
This design also contributes to lower maintenance needs over time.

Engineered for Precision: 864 Bearing

864 Bearing features a single-row construction, providing precise load handling and stability.
The standard radial clearance ensures consistent performance in various applications.
With an ABEC-1 rating, it meets high precision standards for industrial use.
Its dynamic thrust rating of 15,300 lbf at 90 million revolutions highlights its reliability.

Steel vs Chrome Steel Bearings: Strengths of 864 Bearing

864 Bearing combines chrome steel rings with a steel cage for balanced strength and durability.
This mix ensures resistance to wear while maintaining cost-effectiveness.
The bearing’s dynamic radial rating of 179,000 lbf for two rows showcases its load capacity.
It operates efficiently within a broad temperature range, making it versatile for different environments.

Application

Industrial Uses of 864 Bearing
864 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 864 Bearing Used?
You’ll find 864 Bearing in automotive applications like truck wheel hubs, where its high dynamic radial load capacity supports smooth performance. Its inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 864 Bearing
864 Bearing excels in industrial gearboxes, thanks to its open design and steel cage, which allow for easy maintenance and long service life. It’s also a reliable choice for agricultural machinery.

Automotive vs Aerospace: Applications of 864 Bearing
In automotive settings, 864 Bearing is ideal for axles and transmissions, while its precision makes it suitable for aerospace landing gear components. The ABEC-1 rating ensures consistent performance in both fields.

Key Fields for 864 Bearing
864 Bearing is a go-to for rail and marine applications, where its static radial load capacity handles heavy loads effortlessly. The temperature range also makes it adaptable to various environments.
