52400N Single Cones (Imperial)

Brand: TFL Bearing Interchangeable: Timken 52400N Inch Open
Part number: 52400N
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia4"
Bore Dia Tolerance+0.001" to 0
Cone Width1.4219"
Cone Width Tolerance+0.003" to -0.01
Cone Frontface Backing Diameter4.37"
Cone Backface Backing Diameter4.61"
Performance
Dynamic Radial Load50,200 lbf
Static Radial Load77,000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90)13,000 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1)87,500 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90)10,600 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90)22,700 lbf
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementInch
TypeCones
Bearing Part Number52400N-52618
Bearing TypeRoller
Roller Bearing TypeTapered
For Load DirectionCombined
ConstructionSingle Row
Seal TypeOpen
Series52000
Cone Backface ToClear Radius0.14"
Cage Cone Frontface Clearance0.12"
Cage Cone Backface Clearance0.16"
Effective Center Location-0.02"
ABEC RatingABEC-1
Radial ClearanceStandard (Available in C3/C4/C5)
Material
Ring MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant

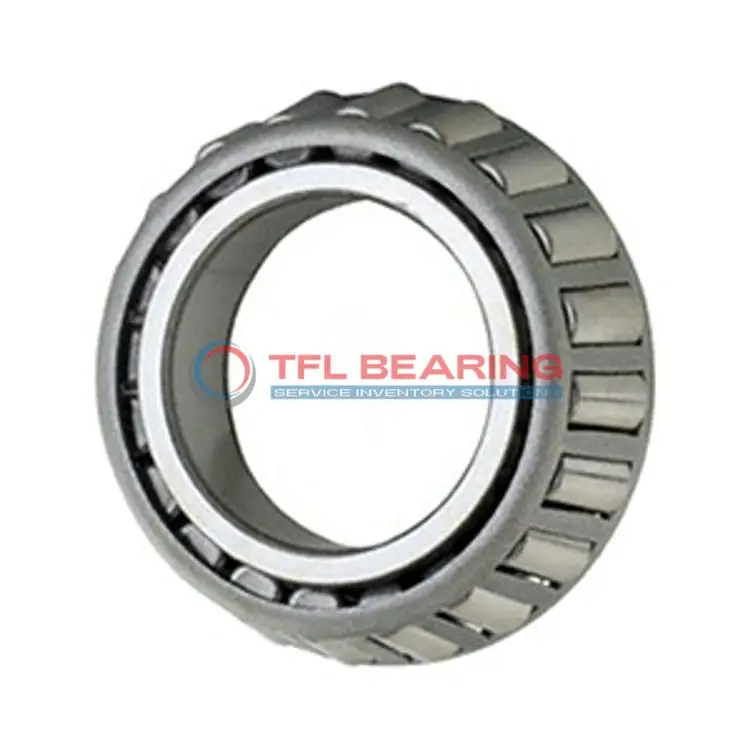

Product photo
52400N Single Cones (Imperial)

Description

The 52400N is a single-row tapered roller bearing cone with a 4-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 50,200 lbf and static loads up to 77,000 lbf.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

With standard radial clearance and ABEC-1 rating, it offers a balance of precision and durability. Compliant with RoHS and REACH standards for safe use.

Features

How Is 52400N Bearing Engineered for Reliability?

52400N Bearing features chrome steel rings and a steel cage, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 50,200 lbf, making it suitable for heavy-duty applications.

The tapered roller design of 52400N Bearing provides smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various working conditions.

52400N Bearing’s standard radial clearance allows for flexibility in different operational setups.
Its ABEC-1 rating ensures consistent performance for industrial and mechanical uses.

Application

Industrial Uses of 52400N Bearing
52400N Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 52400N Bearing Used?
You’ll often find 52400N Bearing in agricultural machinery, particularly in gearboxes and wheel hubs. Its inch sizing makes it a good fit for older or imperial-based systems.

Built for Heavy-Duty Use: 52400N Bearing
52400N Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 52400N Bearing
In automotive applications, 52400N Bearing supports axles and differentials, while in aerospace, it’s used in landing gear systems. Its high dynamic load capacity makes it versatile across industries.

Essential Roles of 52400N Bearing
52400N Bearing is a key component in railway systems, particularly in bogie assemblies. The standard radial clearance ensures smooth performance even under heavy loads.
