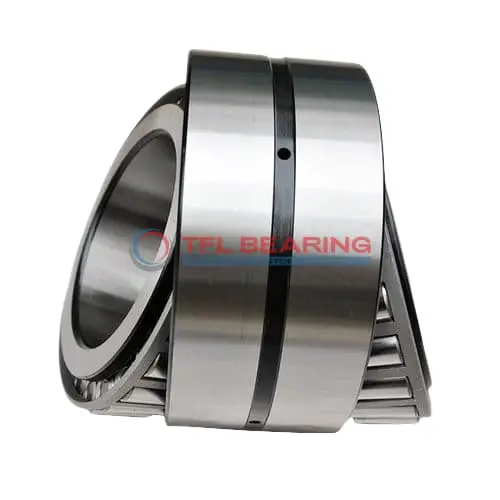

643-632DC TDO (Two-Row Double-Outer Race) (Imperial)

643-632DC TDO (Two-Row Double-Outer Race) (Imperial)

The 643-632DC is a double-row tapered roller bearing with a 2.75″ bore and 5.375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 108,000 lbf and suits heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model features a standard radial clearance and is ABEC-1 rated for reliable performance. Ideal for industrial machinery or automotive systems where high radial and thrust loads are common.

Weighing 12.55 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 643-632DC
  • Brand TFL
  • Size 2.75" x 5.375" x 1.625"
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 3"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.625"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.75"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.96"
  • Cage Cone Backface Clearance 0.15"
  • Dynamic Radial Load 108000 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 643
  • Cup Part Number 632DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 635
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 16100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 9980 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 28000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 12.55 lb

Features

Performance Features of 643-632DC Bearing

643-632DC Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 108,000 lbf, making it suitable for heavy-duty applications.
The double-row tapered roller design ensures stability and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Does 643-632DC Bearing Resist Wear?

643-632DC Bearing’s chrome steel construction enhances durability, reducing wear over time.
The steel cage maintains roller alignment, preventing misalignment and extending service life.
Its standard radial clearance options allow for flexibility in different operational needs.
This design ensures consistent performance even under high radial and thrust loads.

Engineered for Precision: 643-632DC Bearing

643-632DC Bearing features precise tolerances, ensuring smooth operation in demanding environments.
The double-row configuration provides balanced load handling, improving overall efficiency.
Its ABEC-1 rating guarantees reliable performance for general industrial applications.
The bearing’s open design simplifies lubrication, maintaining optimal performance.

Steel vs Ceramic Bearings: Strengths of 643-632DC Bearing

643-632DC Bearing’s chrome steel rollers and rings offer excellent strength and durability.
It handles dynamic radial loads up to 108,000 lbf, outperforming many standard bearings.
The tapered roller design ensures efficient load distribution and reduced friction.
With a wide temperature range, it adapts well to various industrial conditions.

What Makes 643-632DC Bearing Suitable for High-Temperature Applications?

643-632DC Bearing operates reliably in temperatures ranging from -30° to 110°C.
Its chrome steel components resist thermal deformation, maintaining performance.
The open seal type allows for effective lubrication, reducing heat buildup.
This makes it ideal for applications where temperature fluctuations are common.

Application

Industrial Uses of 643-632DC Bearing
The 643-632DC Bearing is commonly used in heavy machinery like construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 643-632DC Bearing Used?
You’ll often find the 643-632DC Bearing in agricultural machinery, such as tractors and harvesters, where its tapered roller design provides reliable performance under heavy loads. The inch sizing makes it a good fit for North American equipment.

Built for Heavy-Duty Use: 643-632DC Bearing
In industrial gearboxes, the 643-632DC Bearing’s open design allows for easy lubrication, extending its service life. The standard radial clearance ensures smooth operation even under varying load conditions.

Automotive vs Aerospace: Applications of 643-632DC Bearing
In automotive applications, the 643-632DC Bearing supports wheel hubs and differentials, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. Its ABEC-1 rating balances performance and cost.

Practical Applications of 643-632DC Bearing
For conveyor systems in warehouses, the 643-632DC Bearing’s robust construction minimizes downtime. The steel cage adds stability, making it a dependable choice for continuous operation.
