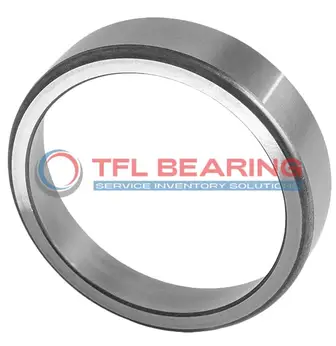

612V Single Cups (Imperial)

612V Single Cups (Imperial)

The 612V is a single cup tapered roller bearing with an outer diameter of 4.75 inches and a width of 1.25 inches, made from durable chrome steel. It fits well in imperial-sized applications and operates smoothly in temperatures from -30°C to 110°C.

This standard cup design is part of the 615 series and is interchangeable with Timken bearings, making it a versatile choice for replacements. Its ABEC-1 rating ensures reliable performance for general industrial use.

The cup features precise tolerances, with a backing diameter of 4.13 inches at the backface and 4.35 inches at the frontface. Its robust construction handles moderate loads with ease.

Ideal for machinery requiring tapered roller bearings, such as gearboxes or conveyor systems. Compliant with RoHS and REACH standards, it’s a safe and practical option for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 612V
  • Brand TFL
  • Interchangeable Timken
  • Size 4.13" x 4.75" x 1.25"
  • Outer Dia 4.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.25"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 4.35"
  • Cup Backface Backing Diameter 4.13"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 615-612V , 617-612V , 619-612V , 620-612V , 621-612V , 622A-612V , 622X-612V , 623-612V , 623V-612V , 624-612V
  • Cups Type Standard
  • Series 615
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 612V Bearing

612V Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The standard cup type allows for easy installation and compatibility with multiple bearing part numbers.
With a temperature range of -30° to 110°C, it performs reliably in diverse environmental conditions.

612V Bearing meets ABEC-1 standards, providing consistent precision for industrial use.
Its robust construction reduces maintenance needs, making it a cost-effective choice.

Application

Common Applications of 612V Bearing
612V Bearing is widely used in industrial machinery, especially in conveyor systems and gearboxes where tapered roller bearings are needed. Its chrome steel construction ensures durability under heavy loads and high temperatures.

In automotive applications, 612V Bearing fits well in wheel hubs and differential systems, providing reliable performance. The inch sizing makes it compatible with many North American vehicle models.

For agricultural equipment, 612V Bearing handles the rough conditions of tractors and harvesters. Its standard cup design simplifies maintenance and replacement in field operations.

Where Is 612V Bearing Used?
You’ll often find 612V Bearing in construction equipment like bulldozers and cranes, where its tapered design manages radial and axial loads efficiently. The ABEC-1 rating ensures consistent performance in demanding environments.

In mining machinery, 612V Bearing stands up to extreme conditions, thanks to its robust chrome steel rings. The wide temperature range makes it suitable for both hot and cold operations.

Built for Heavy-Duty Use: 612V Bearing
612V Bearing excels in heavy machinery such as presses and rolling mills, where its tapered rollers distribute loads evenly. The precise tolerances ensure smooth operation even under stress.

For railway applications, 612V Bearing supports axles and wheels, offering long service life. Its compatibility with Timken models makes it a versatile choice for maintenance and repairs.

Automotive vs Industrial: Applications of 612V Bearing
In automotive settings, 612V Bearing is ideal for drivetrains and steering systems, balancing speed and load capacity. The inch measurements align with many standard designs.

For industrial uses, 612V Bearing shines in pumps and compressors, where its tapered rollers reduce friction. The chrome steel material resists wear, extending the bearing’s lifespan.
