595-592DC TDO (Two-Row Double-Outer Race) (Imperial)

595-592DC TDO (Two-Row Double-Outer Race) (Imperial)

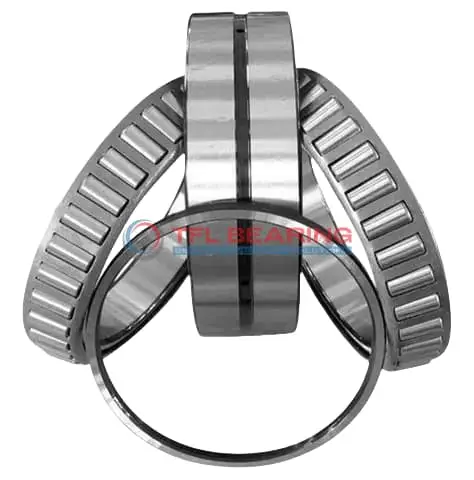

The 595-592DC is a double-row tapered roller bearing with a 3.25″ bore and 6″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 84,600 lbf and is designed for long-lasting performance.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model features a standard radial clearance and is ABEC-1 rated for reliable precision. Ideal for heavy-duty applications like industrial gearboxes or machinery where both radial and thrust loads are present.

Weighing 13.56 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 595-592DC
  • Brand TFL
  • Size 3.25" x 6" x 1.43"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.43"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.25"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 3.94"
  • Cup Frontface Backing Diameter 5.71"
  • Cage Cone Backface Clearance 0.15"
  • Dynamic Radial Load 84600 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 595
  • Cup Part Number 592DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 9530 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 21900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 13.56 lb

Features

How Is 595-592DC Bearing Engineered for Reliability?

595-592DC Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 84,600 lbf.

The steel cage maintains roller alignment, reducing friction and extending service life.
With standard radial clearance options, it offers flexibility for various applications.

595-592DC Bearing operates efficiently within a temperature range of -30° to 110°C.
Its precise tolerances ensure smooth performance in demanding conditions.

The open design simplifies lubrication, enhancing maintenance convenience.
Weighing 13.56 lb, it balances strength and practicality for industrial use.

Application

Industrial Uses of 595-592DC Bearing
595-592DC Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is 595-592DC Bearing Used?
In automotive applications, 595-592DC Bearing supports heavy-duty axles and wheel hubs, providing reliable performance under high stress. Its inch sizing makes it a preferred choice for North American vehicle manufacturers.

Built for Heavy-Duty Use: 595-592DC Bearing
For industrial conveyor systems, 595-592DC Bearing offers smooth operation and long service life, even under continuous use. The open seal design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 595-592DC Bearing
In automotive settings, 595-592DC Bearing excels in truck transmissions and differentials, while its robust design also suits aerospace landing gear components. The tapered roller construction ensures stability under varying loads.

Essential Roles of 595-592DC Bearing
595-592DC Bearing is vital in agricultural machinery, such as tractors and harvesters, where it withstands harsh conditions and heavy loads. The standard radial clearance option provides flexibility for different operational needs.
