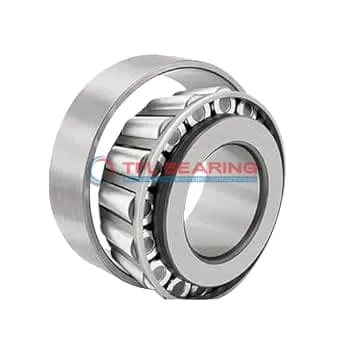

TS (Single Row Tapered Roller Bearings) (Imperial) 41100-41286

TS (Single Row Tapered Roller Bearings) (Imperial) 41100-41286

The 41100-41286 is a single-row tapered roller bearing with a 1-inch bore and 2.8593-inch outer diameter, built from sturdy chrome steel. It handles combined loads up to 18600 lbf radially and 4960 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing just 1.1 lb, it’s compact yet robust for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most environments. The ABEC-1 rating ensures consistent performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 41100-41286
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.8593" x 0.9688"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8593"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.955"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9688"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.44"
  • Cone Backface Backing Diameter 1.61"
  • Cup Frontface Backing Diameter 2.72"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.09"
  • Effective Center Location -0.16"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 41100
  • Cup Part Number 41286
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 41000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 18600 lbf
  • Static Radial Load 14400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4820 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4960 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.1 lb

Features

How Does 41100-41286 Bearing Handle Combined Loads?

41100-41286 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 18,600 lbf, ensuring reliable performance in demanding applications.
The steel cage keeps the rollers aligned, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

What Makes 41100-41286 Bearing Suitable for High-Temperature Applications?

41100-41286 Bearing withstands temperatures up to 110°C, maintaining its performance in demanding environments.
The chrome steel construction ensures durability and resistance to thermal expansion.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different temperature conditions.
The bearing’s design ensures consistent operation even under high thermal stress.

Engineered for Precision: 41100-41286 Bearing

41100-41286 Bearing features precise cone and cup dimensions, ensuring accurate alignment and smooth operation.
The tapered roller design distributes loads evenly, reducing stress on individual components.
With an ABEC-1 rating, it meets high standards for precision in industrial applications.
Its effective center location of -0.16″ enhances stability and performance.

Application

Industrial Uses of 41100-41286 Bearing
The 41100-41286 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 41100-41286 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a straightforward replacement for Timken equivalents in older vehicles.

For industrial conveyor systems, 41100-41286 Bearing’s open design simplifies lubrication and maintenance, reducing downtime. The standard radial clearance options allow for flexibility in different operational conditions.

What Makes 41100-41286 Bearing a Preferred Choice?
This bearing’s single-row tapered design offers a balance of radial and thrust load capacity, making it versatile for machinery like gearboxes and pumps. The steel cage adds robustness without compromising smooth operation.

In mining equipment, 41100-41286 Bearing withstands harsh conditions thanks to its high dynamic load rating. The ABEC-1 rating ensures consistent performance without overcomplicating precision requirements.

Built for Heavy-Duty Use: 41100-41286 Bearing
You’ll often find 41100-41286 Bearing in forklifts and other material handling tools, where its combined load capability shines. The inch measurements make it compatible with a wide range of North American machinery.

For forestry equipment, this bearing’s temperature range and lubrication needs align well with outdoor operational demands. Its weight-to-strength ratio makes it practical without sacrificing durability.

Automotive vs Aerospace: Applications of 41100-41286 Bearing
In automotive settings, 41100-41286 Bearing is ideal for drivetrain components, offering reliable performance under stress. The interchangeable Timken design simplifies sourcing for repairs.

While not typically used in aerospace, this bearing’s precision makes it suitable for ground support equipment. Its static radial load capacity ensures stability in stationary applications.
