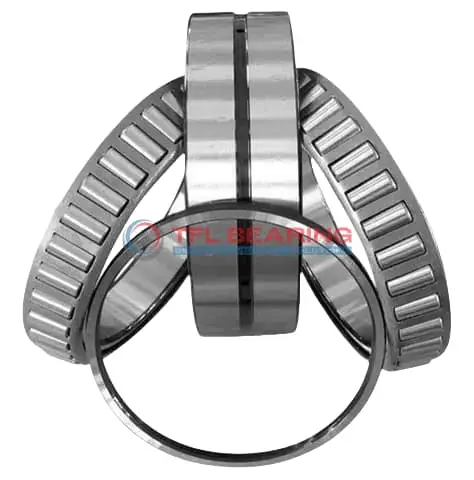

582-572DC TDO (Two-Row Double-Outer Race) (Imperial)

582-572DC TDO (Two-Row Double-Outer Race) (Imperial)

The 582-572DC is a double-row tapered roller bearing with a 3.25″ bore and 5.5115″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 80,900 lbf and is designed for long-lasting performance.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation even under heavy loads. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is part of the 575 series and comes with standard cups for straightforward installation. Ideal for industrial machinery or heavy equipment where high radial and thrust loads are common.

Weighing 10.08 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 582-572DC
  • Brand TFL
  • Size 3.25" x 5.5115" x 1.4212"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.5115"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.4212"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.25"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 4.09"
  • Cup Frontface Backing Diameter 5.25"
  • Cage Cone Backface Clearance 0.12"
  • Dynamic Radial Load 80900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 582
  • Cup Part Number 572DC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 575
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 12100 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 8330 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 21000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 10.08 lb

Features

Performance Features of 582-572DC Bearing

582-572DC Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 80,900 lbf, ensuring reliable performance in heavy-duty applications.

The double-row tapered roller design of 582-572DC Bearing distributes loads evenly, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

582-572DC Bearing’s steel cage keeps the rollers aligned, maintaining smooth operation under stress.
Its standard radial clearance options provide flexibility for different installation requirements.

The open design of 582-572DC Bearing simplifies lubrication, ensuring consistent performance over time.
Weighing 10.08 lb, it balances durability with manageable handling for maintenance.

Application

Industrial Uses of 582-572DC Bearing
The 582-572DC Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 582-572DC Bearing supports axle systems and wheel hubs, providing reliable performance under high stress. The imperial sizing makes it a preferred choice for North American vehicle manufacturers.

For industrial automation, 582-572DC Bearing’s tapered roller design offers smooth operation in conveyor systems and robotic arms. The open seal type allows for easy lubrication, extending its service life.

Where Is 582-572DC Bearing Used?
You’ll often find 582-572DC Bearing in agricultural machinery, where its robust design withstands rough terrain and heavy loads. The steel cage adds extra strength, making it suitable for tractors and harvesters.

In material handling systems, 582-572DC Bearing ensures smooth rotation in pulley assemblies and gearboxes. Its standard radial clearance provides consistent performance across various operating conditions.

Built for Heavy-Duty Use: 582-572DC Bearing
The 582-572DC Bearing excels in forestry equipment, handling the intense vibrations and loads typical in log splitters and sawmills. Its tapered rollers distribute stress evenly, reducing wear.

For railway applications, 582-572DC Bearing supports bogie systems, where its combined load capacity and temperature tolerance are crucial. The ABEC-1 rating ensures reliable precision even under constant use.

Automotive vs Aerospace: Applications of 582-572DC Bearing
In automotive systems, 582-572DC Bearing is ideal for drivetrains, offering a balance of strength and smooth operation. Its inch measurements align with standard US automotive specifications.

For aerospace ground equipment, 582-572DC Bearing provides dependable performance in tow tractors and loading systems. The chrome steel rollers ensure longevity despite frequent use and heavy loads.
