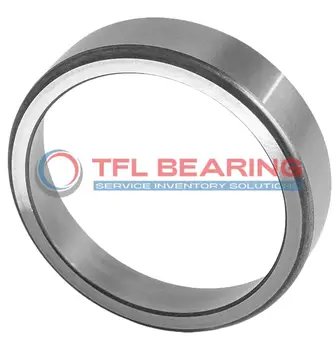

HH506310 Single Cups (Imperial)

HH506310 Single Cups (Imperial)

The HH506310 is a tapered roller bearing cup with an outer diameter of 4.5 inches and a width of 1.42 inches, crafted from durable chrome steel. It fits well with Timken bearings, making it a versatile choice for replacements.

Designed for standard applications, it handles temperatures from -30°C to 110°C, ensuring reliable performance in various conditions. Its ABEC-1 rating offers a good balance of precision and affordability.

The cup features a backing diameter of 4.25 inches at the front and 3.82 inches at the back, providing a secure fit. Its simple design makes installation straightforward.

Ideal for industrial machinery or automotive uses where tapered roller bearings are needed. Compliant with RoHS and REACH standards, it’s a safe and practical option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HH506310
  • Brand TFL
  • Interchangeable Timken
  • Size 3.82" x 4.5" x 1.42"
  • Outer Dia 4.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.42"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 4.25"
  • Cup Backface Backing Diameter 3.82"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number HH506348-HH506310 , HH506349-HH506310
  • Cups Type Standard
  • Series HH506300
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose HH506310 Single Cups for Precision Tasks?

HH506310 Single Cups are crafted from chrome steel, offering durability and resistance to wear in demanding applications.
The tapered roller design ensures smooth operation, even under heavy loads, making them ideal for precision tasks.

With an outer diameter of 4.5″ and a cup width of 1.42″, HH506310 Single Cups provide a precise fit for various setups.
Their temperature range of -30° to 110°C allows reliable performance in diverse working conditions.

The ABEC-1 rating ensures consistent quality, while the standard cup type simplifies installation and maintenance.
HH506310 Single Cups are interchangeable with Timken, offering flexibility and convenience for users.

Application

Industrial Uses of HH506310 Bearing
HH506310 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is HH506310 Bearing Used?
You’ll often find HH506310 Bearing in automotive applications like wheel hubs and differential systems, thanks to its precise inch sizing and compatibility with Timken equivalents. Its robust design makes it a reliable choice for long-term use.

Built for Heavy-Duty Use: HH506310 Bearing
HH506310 Bearing excels in industrial gearboxes and conveyor systems, where its tapered rollers distribute loads evenly. The ABEC-1 rating ensures consistent performance without overcomplicating maintenance.

Automotive vs Industrial: Applications of HH506310 Bearing
In automotive settings, HH506310 Bearing supports wheel assemblies, while in industrial contexts, it’s ideal for pulley systems. Its inch measurements make it versatile for various machinery types.

Perfect Fit for Automation: HH506310 Bearing
HH506310 Bearing works well in automated production lines, particularly in robotic arms and assembly systems. The standard cup design simplifies installation and replacement.
