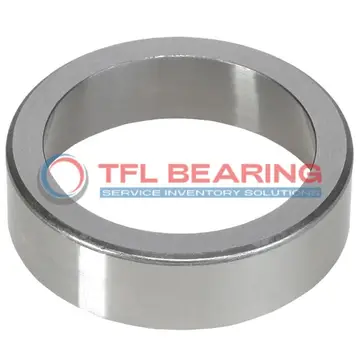

561251 Single Cups (Imperial)

561251 Single Cups (Imperial)

The 561251 is a single cup bearing with an outer diameter of 12.5 inches and a width of 2.125 inches, made from durable chrome steel. It fits well with tapered roller bearings and is interchangeable with Timken models, making it a versatile choice.

Its standard cup design ensures easy installation and reliable performance in temperatures ranging from -30°C to 110°C. The ABEC-1 rating provides good precision for general industrial use.

This cup is part of the 560000 series and works with several bearing part numbers, offering flexibility in replacements. Ideal for machinery where tapered roller bearings are needed, such as in automotive or heavy equipment applications.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial needs. The precise tolerances ensure a snug fit and long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 561251
  • Brand TFL
  • Interchangeable Timken
  • Size 10.98" x 12.5" x 2.125"
  • Outer Dia 12.5"
  • Outer Dia Tolerance +0.002" to 0
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.19"
  • Cup Frontface Backing Diameter 11.36"
  • Cup Backface Backing Diameter 10.98"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 560950-561251 , EE560592-561251 , EE560600-561251 , EE560629-561251 , EE560650-561251
  • Cups Type Standard
  • Series 560000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is 561251 Bearing Engineered for Reliability?

561251 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its tapered roller design ensures smooth operation, even under heavy loads and high speeds.

With an outer diameter of 12.5″ and precise tolerances, 561251 Bearing provides consistent performance.
The standard cup type and ABEC-1 rating make it suitable for a variety of industrial applications.

561251 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its compliance with RoHS and REACH standards ensures environmental and safety reliability.

Application

Industrial Uses of 561251 Bearing
The 561251 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its tapered design handles radial and axial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

What Makes 561251 Bearing a Preferred Choice?
With its inch sizing and compatibility with Timken models, 561251 Bearing fits seamlessly into industrial applications like conveyor systems and gearboxes. The standard cup type offers reliable performance under varying load conditions.

Built for Heavy-Duty Use: 561251 Bearing
In automotive applications, 561251 Bearing supports wheel hubs and drivetrain components, providing smooth operation even under high stress. Its temperature range makes it suitable for both hot and cold climates.

Automotive vs Industrial: Applications of 561251 Bearing
While 561251 Bearing excels in vehicle systems like axles and transmissions, it’s equally effective in industrial settings such as mining equipment. The ABEC-1 rating ensures consistent performance without unnecessary precision costs.

Where Is 561251 Bearing Used?
You’ll find 561251 Bearing in farm machinery, where its robust design handles uneven loads and harsh conditions. The chrome steel rings and tapered rollers make it a dependable choice for long-term use.
