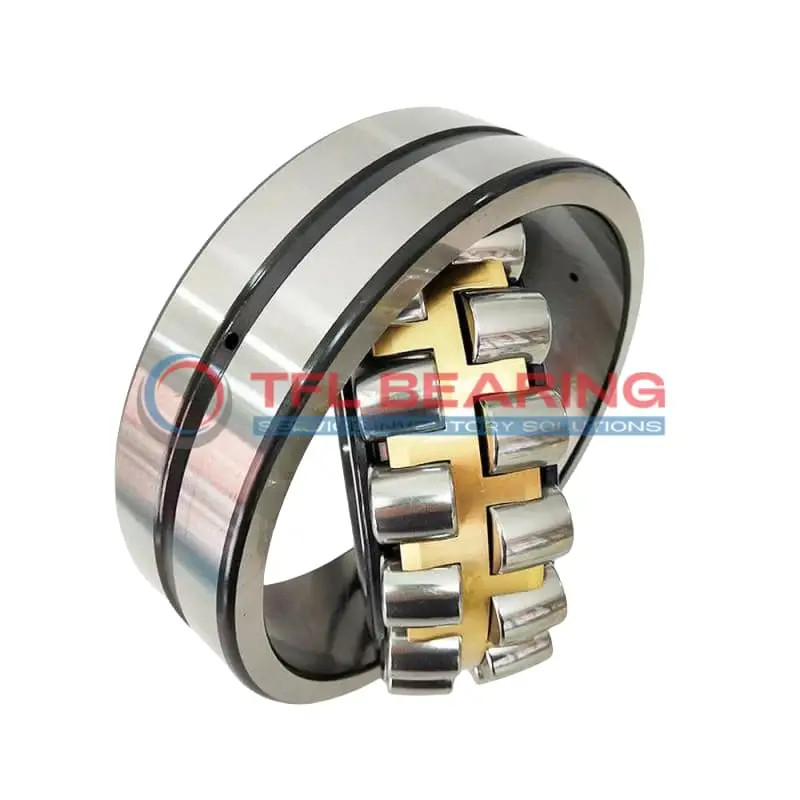

232/560 CAK/C3W33 Double Row Spherical Roller Bearing

232/560 CAK/C3W33 Double Row Spherical Roller Bearing

The 232/560 CAK/C3W33 is a double-row spherical roller bearing with a large 560mm bore and 1030mm outer diameter, built from tough chrome steel. It handles combined loads up to 3133837 lbf and runs smoothly at speeds up to 430 RPM.

Its brass cage and spherical roller design ensure durability, while the tapered bore (1:12) allows for secure fitting. The bearing operates in temperatures from -30°C to 200°C, making it suitable for demanding environments.

With a C3 radial clearance and open design, it requires regular lubrication for optimal performance. The lubrication groove (22.3mm wide) and holes (12mm diameter) make maintenance straightforward.

This heavy-duty bearing weighs 1355kg and is interchangeable with SKF models. Ideal for industrial machinery like crushers or large gearboxes where high radial loads and misalignment compensation are needed. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 232/560 CAK/C3W33
  • Brand TFL
  • Interchangeable SKF
  • Size 560 x 1030 x 365 mm
  • Bore Dia 560 mm
  • Bore Dia Tolerance +0.07mm to 0
  • Outer Dia 1030 mm
  • Outer Dia Tolerance -0.125mm to 0
  • Width 365 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 706 mm
  • Shoulder/Recess Dia Of Outer Ring 878 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.9.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 3133837 lbf
  • Static Radial Load 4945797 lbf
  • Max Speed 430 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1355 kg
  • Price （US$） US$36,209.94

Features

Performance Features of 232/560 CAK/C3W33 Bearing

232/560 CAK/C3W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 3133837 lbf, ensuring dependable operation in heavy-duty settings.
The brass cage maintains roller alignment, reducing friction and enhancing longevity.
With a maximum speed of 430 rpm, it delivers a balance of strength and efficiency.

How Is 232/560 CAK/C3W33 Bearing Engineered for Reliability?

232/560 CAK/C3W33 Bearing features a double-row spherical roller design, ideal for handling misalignment and heavy loads.
The tapered bore ensures secure fitting, reducing slippage during operation.
Its C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
The lubrication groove and holes ensure consistent oil flow, preventing premature wear.

Built for Durability: 232/560 CAK/C3W33 Bearing

232/560 CAK/C3W33 Bearing withstands extreme conditions, operating in temperatures from -30° to 200°C.
The chrome steel construction resists wear, even under high static radial loads of 4945797 lbf.
Its open design simplifies lubrication, ensuring smooth performance over time.
The precise tolerances and robust materials make it a reliable choice for industrial applications.

Steel vs Ceramic Bearings: Strengths of 232/560 CAK/C3W33 Bearing

232/560 CAK/C3W33 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
Unlike ceramic options, it offers superior load-bearing capacity and cost-effectiveness for heavy machinery.
The brass cage adds stability, reducing noise and vibration during operation.
Its design ensures long service life, even in demanding environments.

Application

Industrial Uses of 232/560 CAK/C3W33 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under intense vibration.

Where Is 232/560 CAK/C3W33 Bearing Used?
You’ll often find it in mining equipment, where its large size and robust construction withstand harsh conditions. The taper bore design also makes installation easier in bulky setups.

Built for Heavy-Duty Use: 232/560 CAK/C3W33 Bearing
It’s a go-to choice for wind turbine gearboxes, thanks to its ability to manage misalignment and heavy loads. The chrome steel rollers offer long-lasting performance in demanding environments.

Automotive vs Aerospace: Applications of 232/560 CAK/C3W33 Bearing
While it’s too large for most vehicles, this bearing excels in industrial gearboxes and large-scale aerospace ground equipment. Its high temperature range suits varied operational needs.

Key Fields for 232/560 CAK/C3W33 Bearing
In paper mills, it supports large rollers that require precise alignment and durability. The C3 clearance ensures reliable performance even with thermal expansion.
