536-533D TDO (Two-Row Double-Outer Race) (Imperial)

536-533D TDO (Two-Row Double-Outer Race) (Imperial)

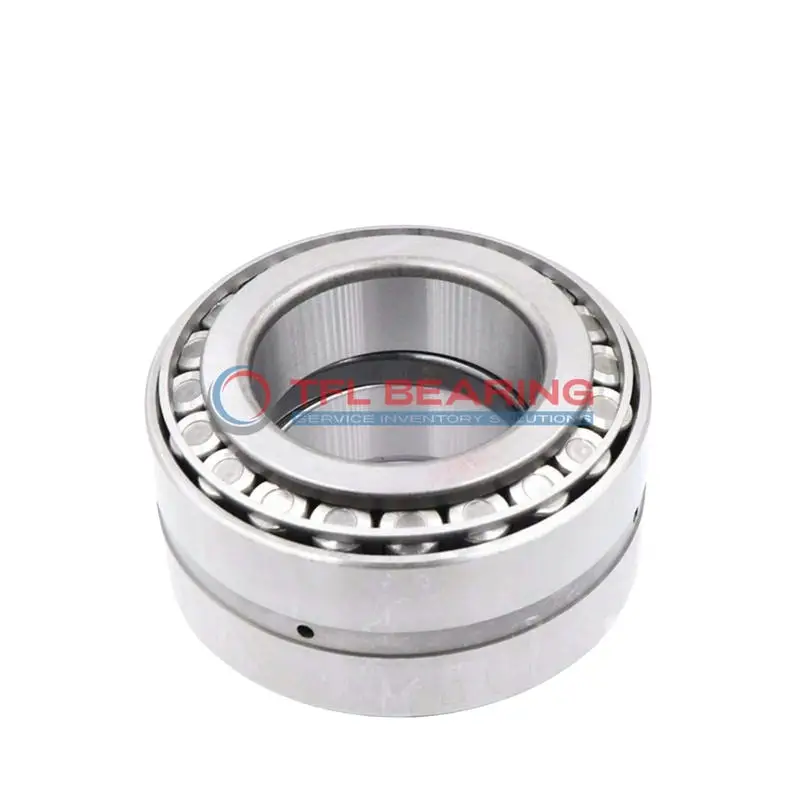

The 536-533D is a double-row tapered roller bearing with a 1.875″ bore and 4.375″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 67400 lbf and is designed for long-lasting performance.

Its open design allows for easy lubrication, while the steel cage ensures smooth operation. The bearing works well in temperatures ranging from -30°C to 110°C, making it versatile for various conditions.

This model is part of the 535 series and comes with standard radial clearance, though other options like C3/C4/C5 are available. Ideal for heavy-duty applications such as industrial gearboxes or machinery where combined loads are common.

Weighing 7.94 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 536-533D
  • Brand TFL
  • Size 1.875" x 4.375" x 1.455"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.455"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.125"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 2.44"
  • Cup Frontface Backing Diameter 3.96"
  • Cage Cone Backface Clearance 0.08"
  • Dynamic Radial Load 67400 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 536
  • Cup Part Number 533D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 5090 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 17500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.94 lb

Features

Performance Features of 536-533D Bearing

536-533D Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 67,400 lbf, ensuring reliable performance in heavy-duty applications.
The double-row tapered roller design enhances stability and load distribution.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

Why Choose 536-533D Bearing for Precision Tasks?

536-533D Bearing features a standard radial clearance, providing consistent performance in precision applications.
The steel cage maintains roller alignment, reducing friction and extending service life.
Its ABEC-1 rating ensures dependable accuracy for industrial use.
The open design allows for easy lubrication, keeping maintenance straightforward.

Engineered for Reliability: 536-533D Bearing

536-533D Bearing’s double-row construction handles both radial and thrust loads efficiently.
The chrome steel components resist wear, ensuring long-term durability.
With a dynamic thrust rating of 5,090 lbf, it excels in demanding environments.
Its inch measurements make it compatible with imperial system machinery.

Steel vs Ceramic Bearings: Strengths of 536-533D Bearing

536-533D Bearing uses chrome steel for its rollers and rings, balancing strength and cost-effectiveness.
The material choice ensures high load capacity and resistance to fatigue.
Its standard lubrication requirement simplifies upkeep without compromising performance.
The bearing’s robust design suits industrial applications where reliability is key.

Application

Industrial Uses of 536-533D Bearing
The 536-533D Bearing is commonly used in heavy machinery like construction equipment, where its double-row design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 536-533D Bearing supports wheel hubs and differential systems, providing reliable performance under high stress. The inch sizing makes it a good fit for American and British vehicle models.

For industrial automation, 536-533D Bearing works well in conveyor systems and robotic arms, thanks to its open design and easy lubrication. The steel cage adds extra strength for continuous operation.

Where Is 536-533D Bearing Used?
You’ll often find 536-533D Bearing in agricultural machinery, where its tapered rollers manage heavy loads from tillers and harvesters. The standard radial clearance allows for smooth movement even in dusty conditions.

Built for Heavy-Duty Use: 536-533D Bearing
This bearing excels in mining equipment, where its double-row construction withstands extreme loads and vibrations. The chrome steel rollers ensure long-lasting performance in harsh conditions.

Automotive vs Aerospace: Applications of 536-533D Bearing
In cars, 536-533D Bearing handles wheel and drivetrain loads, while in aerospace, it’s suited for auxiliary systems due to its robust design. The temperature range makes it versatile for both industries.
