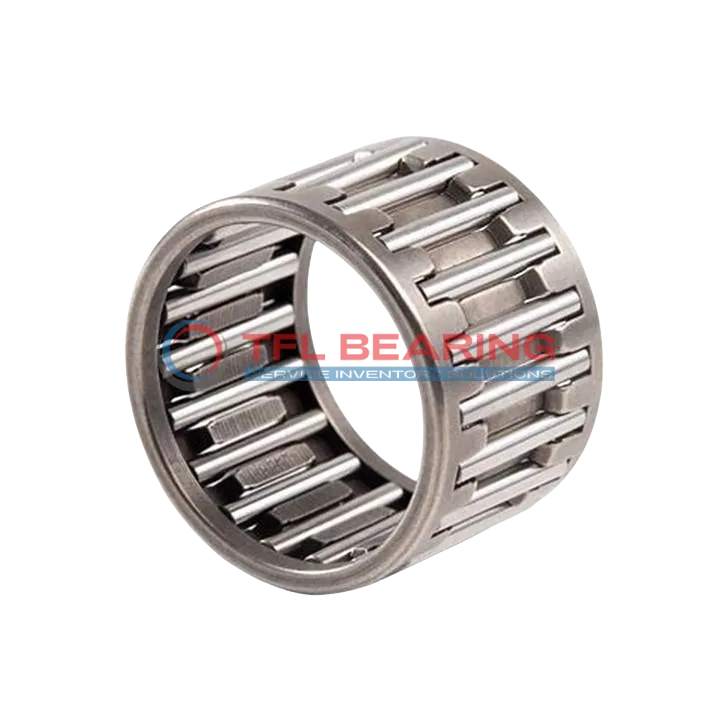

Needle Roller And Cage Assemblies K42X47X17

Needle Roller And Cage Assemblies K42X47X17

The K42X47X17 is a needle roller and cage assembly with a 42mm bore and 47mm outer diameter, crafted from sturdy steel. It handles radial loads up to 4882 lbf and spins smoothly at speeds up to 11000 RPM.
Its single-row design with a steel cage ensures durability and consistent performance. The compact width of 17mm makes it suitable for tight spaces.
This assembly is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like transmissions or small machinery where high radial loads are present.
Weighing just 32g, it’s lightweight yet robust. Compliant with RoHS standards, it operates well in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K42X47X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 42 mm
  • Outer Dia 47 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 4882 lbf
  • Static Radial Load 9675 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 11000 rpm
  • Weight 32 g
Needle Roller And Cage Assemblies K42X47X17 dimension drawing
Download DWG Download PDF

Features

Core Advantages of K42X47X17 Bearing
K42X47X17 Bearing features a steel cage and needle rollers, providing strong resistance to radial loads.
Its dynamic radial load capacity reaches 4882 lbf, ensuring reliable performance in high-speed applications.
The compact design of K42X47X17 Bearing allows for efficient space utilisation without compromising strength.
With a maximum speed of 11,000 rpm, it delivers consistent performance under demanding conditions.
K42X47X17 Bearing operates smoothly within a temperature range of -30° to 110°C, suitable for various environments.
Its lightweight construction at just 32 grams makes it ideal for applications where weight is a concern.

Application

Industrial Uses of K42X47X17 Bearing
K42X47X17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel cage and needle rollers ensure durability even in demanding environments.
Where Is K42X47X17 Bearing Used?
You’ll often find K42X47X17 Bearing in automotive transmissions, where its ability to handle high radial loads keeps things running smoothly. Its metric sizing makes it a versatile choice for various vehicle models.
Perfect Fit for Automation: K42X47X17 Bearing
In robotic arms and automated machinery, K42X47X17 Bearing provides reliable performance thanks to its high-speed capability and steel construction. The single-row design simplifies installation and maintenance.
Medical vs Industrial: Where K42X47X17 Bearing Excels
While K42X47X17 Bearing is robust enough for industrial presses, its precision also suits medical devices like lab equipment. The wide temperature range ensures consistent operation in different settings.
Key Fields for K42X47X17 Bearing
K42X47X17 Bearing is a go-to for electric tools, where its lightweight design and high rpm tolerance enhance performance. The steel needles offer excellent wear resistance, extending the bearing’s lifespan.
