53162-53376D TDO (Two-Row Double-Outer Race) (Imperial)

53162-53376D TDO (Two-Row Double-Outer Race) (Imperial)

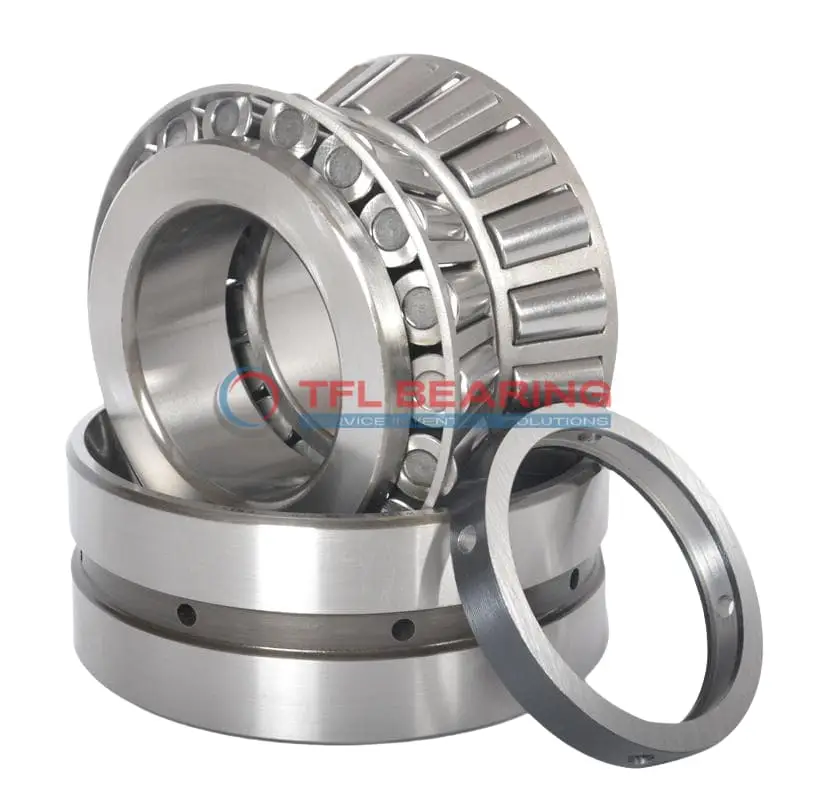

The 53162-53376D is a double-row tapered roller bearing with a 1.625″ bore and 3.75″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 46500 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures smooth operation even under heavy loads. The bearing works well in temperatures from -30°C to 110°C.

This model features a standard radial clearance and is ABEC-1 rated for reliable precision. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 4.32 lb, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53162-53376D
  • Brand TFL
  • Size 1.625" x 3.75" x 1.1142"
  • Bore Dia 1.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 1.75"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.1142"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 2.5625"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.54"
  • Cage Cone Backface Clearance 0.19"
  • Dynamic Radial Load 46500 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 53162
  • Cup Part Number 53376D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 53000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 6920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 8760 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 12000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.32 lb

Features

How Is 53162-53376D Bearing Engineered for Reliability?

53162-53376D Bearing features a double-row tapered roller design, providing strong resistance to combined radial and thrust loads.
Its chrome steel construction ensures durability, even under heavy dynamic radial loads of up to 46,500 lbf.
The steel cage maintains roller alignment, reducing friction and extending the bearing’s service life.
With a standard radial clearance and ABEC-1 rating, it offers reliable performance in various applications.

What Makes 53162-53376D Bearing Suitable for High-Temperature Applications?

53162-53376D Bearing operates effectively within a temperature range of -30° to 110 °C, making it suitable for demanding environments.
Its chrome steel rings and rollers resist wear, ensuring consistent performance under thermal stress.
The open seal design allows for proper lubrication, further enhancing its high-temperature capabilities.
This bearing is ideal for applications where heat resistance and reliability are crucial.

Designed for Durability: 53162-53376D Bearing

53162-53376D Bearing is built with chrome steel components, offering excellent resistance to wear and fatigue.
Its double-row tapered roller design distributes loads evenly, reducing stress on individual rollers.
The steel cage ensures smooth operation, even under heavy dynamic radial loads.
With a long service life and minimal maintenance needs, it is a cost-effective choice for industrial applications.

Application

Industrial Uses of 53162-53376D Bearing
53162-53376D Bearing is commonly used in heavy machinery like construction equipment, where its double-row design handles combined radial and thrust loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 53162-53376D Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial conveyors, 53162-53376D Bearing’s tapered roller design offers smooth operation and long service life. The open seal type allows for easy lubrication, reducing maintenance downtime.

Where Is 53162-53376D Bearing Used?
53162-53376D Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its robust design withstands harsh conditions. The standard radial clearance ensures consistent performance.

In mining equipment, 53162-53376D Bearing’s high dynamic load capacity makes it suitable for crushers and screens. The steel cage adds extra strength, prolonging bearing life.

Built for Heavy-Duty Use: 53162-53376D Bearing
53162-53376D Bearing excels in forestry equipment, handling the heavy loads and shocks typical in logging operations. Its ABEC-1 rating provides reliable precision.

For material handling systems, 53162-53376D Bearing’s tapered rollers reduce friction, improving efficiency. The inch measurements ensure easy integration into existing setups.

Automotive vs Aerospace: Applications of 53162-53376D Bearing
In automotive systems, 53162-53376D Bearing is often found in truck axles, offering durability and load capacity. The chrome steel rollers resist wear over time.

For aerospace ground equipment, 53162-53376D Bearing supports heavy loads in tow tractors and loaders. Its temperature range suits various operational conditions.
