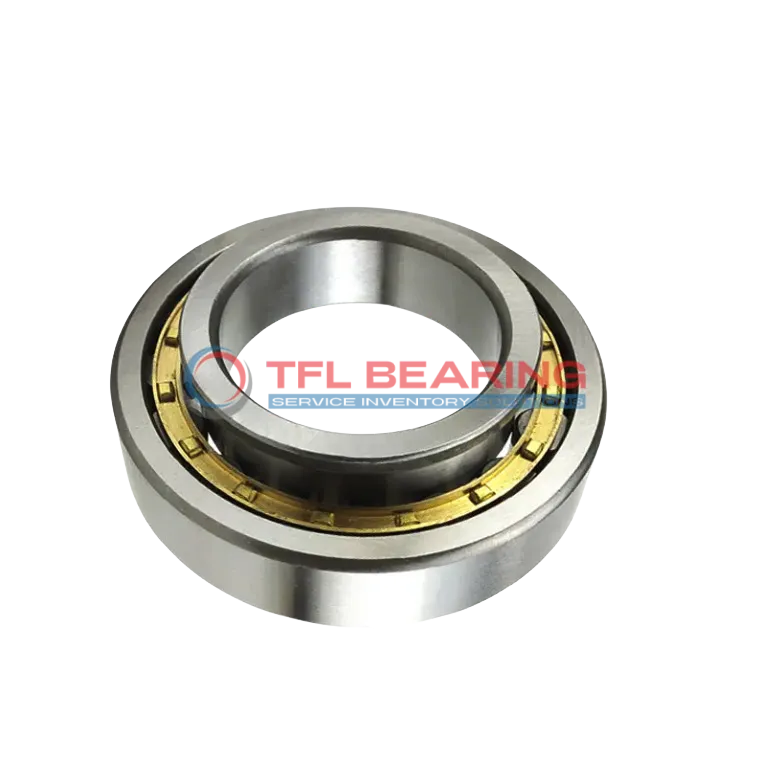

Single Row Cylindrical Roller Bearings With Inner Ring NU 218 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NU 218 ECML

The NU 218 ECML is a single-row cylindrical roller bearing with a 90mm bore and 160mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 46800 lbf and runs smoothly at speeds up to 8000 RPM.

Its brass cage design ensures stability, while the open construction allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

With a chamfer dimension of 2mm, it fits securely in tight spaces. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 2.56kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 218 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 30 mm
  • Width Tolerance -0.20mm to 0
  • Chamfer Dimension r1,2(min.) 2 mm
  • Chamfer Dimension r3,4(min.) 2 mm
  • Permissible Axial Displacement(max.) 1.8 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 46800 lbf
  • Static Radial Load 49500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 2.56 kg
  • Shoulder Dia Of Outer Ring 139.25 mm
  • Raceway Diameter Of Inner Ring 107 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 218 ECML dimension drawing
Download DWG Download PDF

Features

How Does NU 218 ECML Bearing Handle Combined Loads?

NU 218 ECML Bearing features a chrome steel construction, offering high resistance to both radial and axial loads.
Its dynamic radial load capacity of 46,800 lbf ensures reliable performance in demanding conditions.
The brass cage design helps maintain roller alignment, reducing friction and wear.
With a maximum speed of 8,000 rpm, it balances efficiency and durability for various applications.

Application

Common Applications of NU 218 ECML Bearing
NU 218 ECML Bearing is widely used in industrial machinery, especially in gearboxes and electric motors where high radial loads are common. Its brass cage design helps reduce friction, making it suitable for high-speed operations up to 8000 rpm.

Where Is NU 218 ECML Bearing Used?
You’ll often find NU 218 ECML Bearing in conveyor systems and pumps, thanks to its ability to handle combined loads. The chrome steel construction ensures durability even in demanding environments.

Optimized for Performance: NU 218 ECML Bearing
NU 218 ECML Bearing works well in wind turbines, where its single-row cylindrical design manages radial loads efficiently. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of NU 218 ECML Bearing
In automotive applications, NU 218 ECML Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems. Its metric sizing ensures compatibility across various industries.

Perfect Fit for Automation: NU 218 ECML Bearing
NU 218 ECML Bearing is a reliable choice for robotic arms and automated production lines. The high dynamic radial load capacity ensures smooth operation in repetitive tasks.
