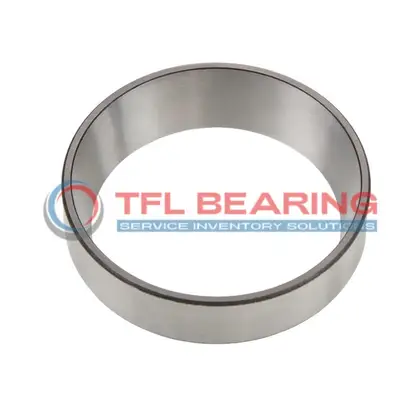

520X Single Cups (Imperial)

520X Single Cups (Imperial)

The 520X is a single cup tapered roller bearing with an outer diameter of 3.937 inches and a width of 1.0625 inches, crafted from durable chrome steel. It fits well in imperial measurements and is interchangeable with Timken models.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. The cup features precise tolerances, ensuring a reliable fit in various applications.

Its robust construction makes it suitable for handling moderate loads in industrial settings. Compliant with RoHS and REACH standards, it’s a safe choice for many environments.

Ideal for machinery requiring tapered roller bearings, this cup offers a dependable solution for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 520X
  • Brand TFL
  • Interchangeable Timken
  • Size 3.46" x 3.937" x 1.0625"
  • Outer Dia 3.937"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 3.74"
  • Cup Backface Backing Diameter 3.46"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 525-520X , 525X-520X , 526-520X , 526A-520X , 527-520X , 528-520X , 528A-520X , 529-520X , 529A-520X , 529X-520X
  • Cups Type Standard
  • Series 525
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 520X Bearing

520X Bearing is crafted from chrome steel, offering durability and resistance to wear in various applications.
Its standard cup design ensures compatibility with multiple bearing part numbers, providing versatility.

The bearing operates efficiently within a temperature range of -30° to 110°C, suitable for diverse environments.
With an ABEC-1 rating, it balances precision and cost-effectiveness for general industrial use.

520X Bearing’s dimensions and tolerances are designed for easy integration into existing systems.
The tapered roller bearing type enhances load distribution, improving overall performance.

Application

Industrial Uses of 520X Bearing
520X Bearing is commonly used in heavy machinery, especially in construction equipment where tapered roller bearings are needed for handling radial and axial loads. Its chrome steel construction ensures durability in tough working conditions.

Where Is 520X Bearing Used?
You’ll often find 520X Bearing in agricultural machinery, such as tractors and harvesters, where its tapered design helps manage varying load demands. The inch sizing makes it compatible with many North American equipment standards.

Built for Heavy-Duty Use: 520X Bearing
520X Bearing works well in mining equipment, providing reliable performance under extreme stress. The standard cup design simplifies installation and maintenance in rugged environments.

Automotive vs Industrial: Applications of 520X Bearing
In automotive applications, 520X Bearing supports wheel hubs and differential systems, offering stability under high speeds. For industrial use, it excels in conveyor systems and gearboxes due to its robust build.

Perfect Fit for Automation: 520X Bearing
520X Bearing is suitable for automated assembly lines, where precision and reliability are key. Its tapered roller design ensures smooth operation in repetitive, high-load scenarios.
