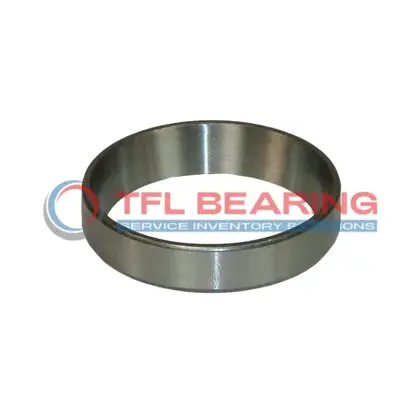

432X Single Cups (Imperial)

432X Single Cups (Imperial)

The 432X is a tapered roller bearing cup with an outer diameter of 3.75 inches and a width of 1.0313 inches, made from sturdy chrome steel. It fits well with various Timken-compatible bearings, ensuring easy replacements.

Designed for standard use, it operates smoothly in temperatures ranging from -30°C to 110°C. The ABEC-1 rating guarantees reliable performance for general applications.

Its precise dimensions and durable construction make it suitable for industrial machinery and automotive systems. The cup’s design ensures a secure fit and long service life.

Compliant with RoHS and REACH standards, it’s a safe and dependable choice for maintenance and repairs. Ideal for use in gearboxes, axles, and other heavy-duty equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 432X
  • Brand TFL
  • Interchangeable Timken
  • Size 3.19" x 3.75" x 1.0313"
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 1.0313"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 3.46"
  • Cup Backface Backing Diameter 3.19"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 435-432X , 436-432X , 437-432X , 438-432X , 438W-432X , 439-432X , 440-432X , 441-432X , 443-432X , 444-432X , 447-432X , 449-432X
  • Cups Type Standard
  • Series 435
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is 432X Bearing Engineered for Reliability?

432X Bearing is crafted from chrome steel, offering excellent durability and resistance to wear.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.

The cup width tolerance of +0.002″ to -0.01″ allows for precise fitting, reducing misalignment risks.
With a temperature range of -30° to 110°C, it performs reliably in varied environments.

432X Bearing is compatible with multiple part numbers, providing flexibility for different applications.
Its ABEC-1 rating ensures consistent quality and smooth operation in industrial settings.

Application

Industrial Uses of 432X Bearing
432X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and axial loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 432X Bearing Used?
You’ll often find 432X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for vehicles following imperial measurement standards.

Built for Heavy-Duty Use: 432X Bearing
432X Bearing excels in industrial gearboxes, providing reliable performance under constant stress. The standard cup design simplifies installation and maintenance in various setups.

Automotive vs Industrial: Applications of 432X Bearing
In automotive systems, 432X Bearing supports smooth rotation in drivetrains, while in industrial settings, it’s trusted for conveyor systems and heavy-duty pulleys. Its compatibility with Timken models adds to its versatility.
