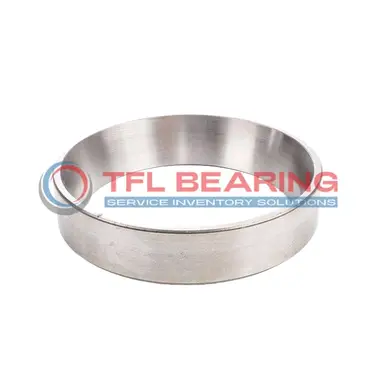

39520P Single Cups (Imperial)

39520P Single Cups (Imperial)

The 39520P is a single cup tapered roller bearing with an outer diameter of 4.4375 inches and a width of 0.9375 inches, made from durable chrome steel. It fits well with standard tapered roller bearings and is interchangeable with Timken models.

Its precise dimensions and tolerances ensure a secure fit, while the chrome steel construction offers reliable performance in temperatures from -30°C to 110°C. The cup design provides stability for handling radial and thrust loads.

This bearing is ABEC-1 rated, making it suitable for general industrial applications. It’s commonly used in machinery, automotive systems, and heavy equipment where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and practical choice for various engineering and maintenance tasks. The 39520P is part of the 39500 series, known for its robustness and compatibility.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 39520P
  • Brand TFL
  • Interchangeable Timken
  • Size 3.98" x 4.4375" x 0.9375"
  • Outer Dia 4.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.13"
  • Cup Frontface Backing Diameter 4.25"
  • Cup Backface Backing Diameter 3.98"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 39573-39520P , 39575-39520P , 39578-39520P , 39580-39520P , 39581-39520P , 39582A-39520P , 39585-39520P , 39585A-39520P , 39585P-39520P , 39586-39520P , 39589-39520P , 39590-39520P , 39590A-39520P , 39591-39520P
  • Cups Type Standard
  • Series 39500
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 39520P Bearing

39520P Bearing is crafted from chrome steel, offering excellent durability and resistance to wear.
Its tapered roller design ensures smooth operation under various load conditions.

With an outer diameter of 4.4375″ and a cup width of 0.9375″, it fits precisely in compatible assemblies.
The standard cup type and ABEC-1 rating make it suitable for general industrial applications.

39520P Bearing operates efficiently within a temperature range of -30° to 110°C.
Its compliance with RoHS and REACH standards ensures environmental and safety adherence.

Application

Industrial Uses of 39520P Bearing
39520P Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered design handles radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

What Makes 39520P Bearing a Preferred Choice?
In automotive applications, 39520P Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 39520P Bearing
For industrial conveyor systems, 39520P Bearing offers smooth operation and long service life, even in high-load scenarios. The standard cup design simplifies installation and maintenance.

Automotive vs Aerospace: Applications of 39520P Bearing
While 39520P Bearing is popular in truck and tractor wheel assemblies, its precision also suits lighter aerospace components. The ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 39520P Bearing
In automated production lines, 39520P Bearing supports robotic arms and assembly units with its reliable load-bearing capacity. The temperature range allows it to work in various factory environments.
