TS (Single Row Tapered Roller Bearings) (Imperial) 43096-43326

TS (Single Row Tapered Roller Bearings) (Imperial) 43096-43326

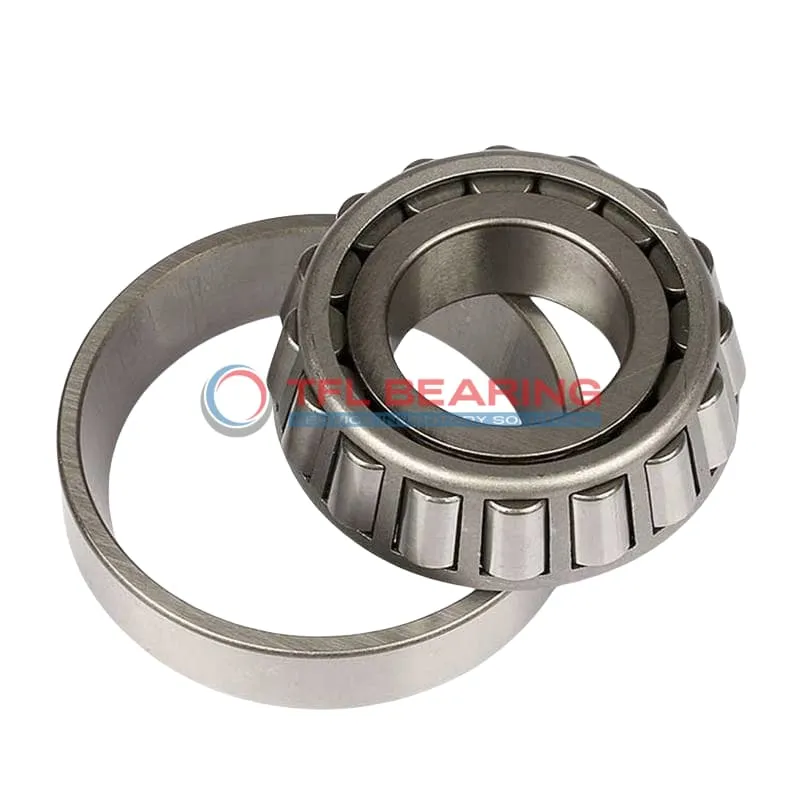

The 43096-43326 is a single-row tapered roller bearing with a 0.96″ bore and 3.25″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 20700 lbf radially and 6130 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in gearboxes, wheel hubs, or industrial machinery where combined loads are common.

Weighing 1.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 43096-43326
  • Brand TFL
  • Interchangeable Timken
  • Size 0.96" x 3.25" x 1"
  • Bore Dia 0.96"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.9478"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.56"
  • Cone Backface Backing Diameter 1.59"
  • Cup Frontface Backing Diameter 3.03"
  • Cup Backface Backing Diameter 2.68"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.08"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 43096
  • Cup Part Number 43326
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 43000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 20700 lbf
  • Static Radial Load 17100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5360 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.500 lb

Features

Performance Features of 43096-43326 Bearing

43096-43326 Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 20,700 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

43096-43326 Bearing’s standard radial clearance allows for smooth operation under different conditions.
Its tapered roller design efficiently handles both radial and thrust loads.

The open seal type simplifies maintenance while ensuring proper lubrication.
Weighing just 1.500 lb, it balances durability with manageable size for installation.

Application

Industrial Uses of 43096-43326 Bearing
43096-43326 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 43096-43326 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial conveyors, 43096-43326 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The standard radial clearance offers flexibility for different load conditions.

Where Is 43096-43326 Bearing Used?
You’ll often find 43096-43326 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design handles rough terrain. The steel cage adds extra strength for long-term use.

In mining equipment, 43096-43326 Bearing’s ability to manage heavy loads makes it ideal for crushers and screens. The ABEC-1 rating ensures consistent performance even in dusty conditions.

Built for Heavy-Duty Use: 43096-43326 Bearing
43096-43326 Bearing excels in forestry equipment like log splitters, where its tapered rollers distribute loads evenly. The inch measurements simplify replacements in older machinery.

For pump systems, 43096-43326 Bearing’s temperature range (-30° to 110°C) suits both indoor and outdoor applications. Its standard radial clearance adapts to thermal expansion.

Automotive vs Aerospace: Applications of 43096-43326 Bearing
In automotive drivetrains, 43096-43326 Bearing handles high torque, while its inch sizing suits classic car restorations. The chrome steel rollers resist wear over time.

For aerospace ground support equipment, 43096-43326 Bearing’s reliability is key, though it’s not rated for in-flight use. The open design simplifies maintenance in hangars.
