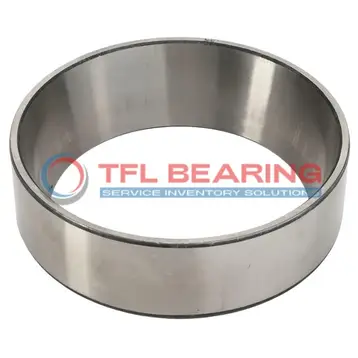

36920 Single Cups (Imperial)

36920 Single Cups (Imperial)

The 36920 is a single cup tapered roller bearing with an outer diameter of 8.9375 inches and a width of 0.9063 inches, made from sturdy chrome steel. It fits well with Timken bearings, making it a practical choice for replacements.

Its standard cup design ensures easy installation, while the chrome steel construction offers reliable durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

With an ABEC-1 rating, it provides good precision for general industrial use. The cup’s dimensions and tolerances are designed for consistent performance in heavy-duty applications.

Ideal for machinery requiring tapered roller bearings, such as automotive or construction equipment. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 36920
  • Brand TFL
  • Interchangeable Timken
  • Size 8.43" x 8.9375" x 0.9063"
  • Outer Dia 8.9375"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.9063"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 8.74"
  • Cup Backface Backing Diameter 8.43"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 36990-36920 , 36990H-36920
  • Cups Type Standard
  • Series 36900
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is 36920 Bearing Engineered for Reliability?

36920 Bearing features chrome steel construction, ensuring durability and resistance to wear in demanding conditions.
Its precise outer diameter tolerance of +0.001″ to 0 guarantees a secure fit and smooth operation.

The tapered roller design of 36920 Bearing provides excellent load distribution, enhancing performance under stress.
With a temperature range of -30° to 110 °C, it remains reliable in various operating environments.

36920 Bearing’s standard cup type simplifies installation, reducing downtime and maintenance efforts.
Its ABEC-1 rating ensures consistent quality and performance for industrial applications.

Application

Key Fields for 36920 Bearing
36920 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is 36920 Bearing Used?
You’ll often find 36920 Bearing in industrial gearboxes and conveyor systems, thanks to its reliable performance under high loads. Its inch sizing makes it a popular choice for machinery in regions using imperial measurements.

Built for Heavy-Duty Use: 36920 Bearing
36920 Bearing excels in applications like mining equipment and large-scale manufacturing, where its robust design withstands continuous operation. The standard cup type simplifies installation and maintenance.

Automotive vs Industrial: Applications of 36920 Bearing
In automotive settings, 36920 Bearing supports wheel hubs and drivetrain components, offering stability under stress. Industrial uses include pulp and paper machinery, where its precision ensures smooth operation.
