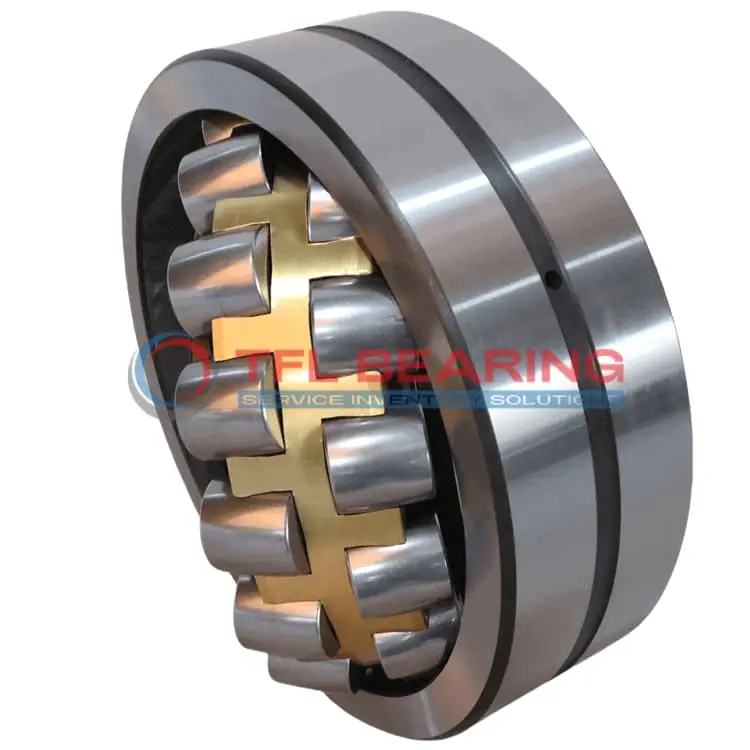

231/530 CA/C2 W33VE554E Double Row Spherical Roller Bearing

231/530 CA/C2 W33VE554E Double Row Spherical Roller Bearing

The 231/530 CA/C2 W33VE554E is a double-row spherical roller bearing with a large 530mm bore and 870mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1916721 lbf and operates smoothly at speeds up to 670 RPM.

Its brass cage and open design allow for easy lubrication, while the spherical rollers accommodate misalignment. The bearing performs reliably in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 640kg, it’s a robust component designed for long-lasting performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 231/530 CA/C2 W33VE554E
  • Brand TFL
  • Interchangeable SKF
  • Size 530 x 870 x 272 mm
  • Bore Dia 530 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 272 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 638 mm
  • Shoulder/Recess Dia Of Outer Ring 763 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1916721 lbf
  • Static Radial Load 3147325 lbf
  • Max Speed 670 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 640 kg
  • Price （US$） US$12,269.34

Features

Performance Features of 231/530 CA/C2 W33VE554E Bearing

231/530 CA/C2 W33VE554E Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,916,721 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and extending operational life.
With a maximum speed of 670 rpm, it balances performance and durability in demanding conditions.

231/530 CA/C2 W33VE554E Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its open design allows for easy lubrication, ensuring consistent performance over time.

The double-row spherical roller design accommodates misalignment, enhancing reliability.
Precision tolerances and robust construction make it a dependable choice for industrial use.

Application

Industrial Uses of 231/530 CA/C2 W33VE554E Bearing
231/530 CA/C2 W33VE554E Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The brass cage ensures smooth operation even in demanding conditions.

What Makes 231/530 CA/C2 W33VE554E Bearing a Preferred Choice?
In mining equipment, 231/530 CA/C2 W33VE554E Bearing’s spherical roller design accommodates misalignment, reducing wear and tear. Its large bore size makes it ideal for heavy-duty applications requiring robust performance.

Built for Heavy-Duty Use: 231/530 CA/C2 W33VE554E Bearing
For wind turbines, 231/530 CA/C2 W33VE554E Bearing offers reliable performance under combined loads, thanks to its chrome steel construction. The lubrication groove ensures consistent performance in high-speed rotations.

Automotive vs Aerospace: Applications of 231/530 CA/C2 W33VE554E Bearing
In large vehicles like trucks, 231/530 CA/C2 W33VE554E Bearing supports axles and transmissions, providing durability. While in aerospace, its high-temperature tolerance makes it suitable for certain ground support equipment.

Where Is 231/530 CA/C2 W33VE554E Bearing Used?
You’ll find 231/530 CA/C2 W33VE554E Bearing in paper mills, where its C2 radial clearance ensures smooth operation under varying loads. The open seal design allows for easy maintenance in dusty environments.
