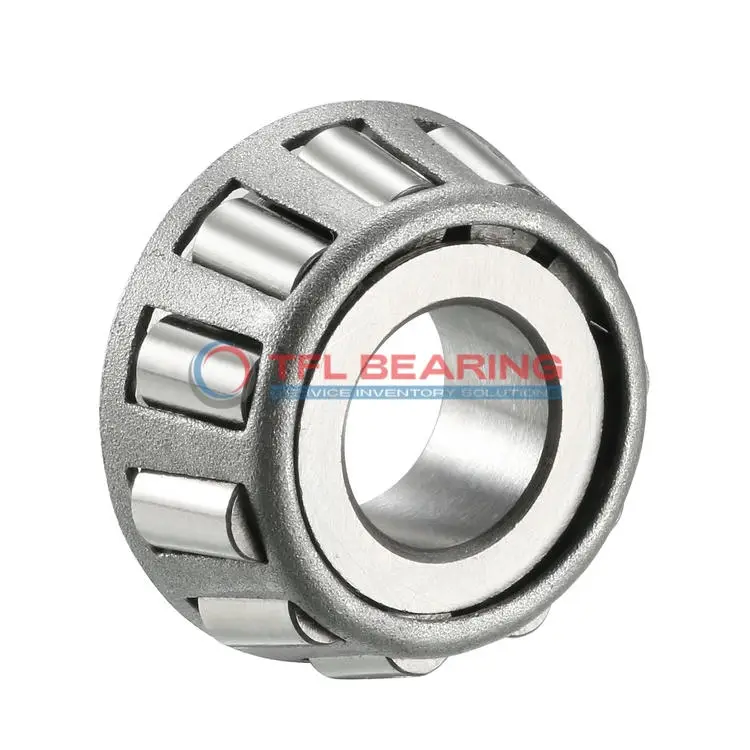

28584 Single Cones (Imperial)

28584 Single Cones (Imperial)

The 28584 is a single-row tapered roller bearing with a 2.0625-inch bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 22200 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows for easy maintenance, while the steel cage ensures reliable performance. The bearing is part of the 28500 series and is interchangeable with Timken models, making it a versatile choice for replacements.

With standard radial clearance and ABEC-1 rating, it offers consistent performance for industrial applications. Ideal for use in heavy machinery or automotive systems where combined loads are common.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various engineering needs. The cone width of 1 inch and precise tolerances ensure a secure fit in most setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 28584
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 28584-28520 , 28584-28521 , 28584-28523 , 28584-28527RB , 28584-28521-B
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 28500
  • Bore Dia 2.0625"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.14"
  • Cone Frontface Backing Diameter 2.28"
  • Cone Backface Backing Diameter 2.56"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.19"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22200 lbf
  • Static Radial Load 29200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5770 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 38700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3720 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 10000 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Why Choose 28584 Bearing for Precision Tasks?

28584 Bearing is crafted from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,200 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

28584 Bearing’s standard radial clearance options provide flexibility for different operational needs.
Its ABEC-1 rating ensures consistent precision for demanding tasks.

Application

Industrial Uses of 28584 Bearing
28584 Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 28584 Bearing Used?
You’ll often find 28584 Bearing in automotive applications like wheel hubs and differential systems, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a fit for many American-made vehicles.

Built for Heavy-Duty Use: 28584 Bearing
28584 Bearing excels in industrial gearboxes, providing reliable performance under high stress. The steel cage adds strength, making it suitable for prolonged use in demanding environments.

Automotive vs Aerospace: Applications of 28584 Bearing
In automotive settings, 28584 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. Its ABEC-1 rating ensures consistent performance.

Essential Roles of 28584 Bearing
28584 Bearing is vital in agricultural machinery, ensuring smooth operation in tractors and harvesters. The standard radial clearance option allows for easy integration into various equipment types.
