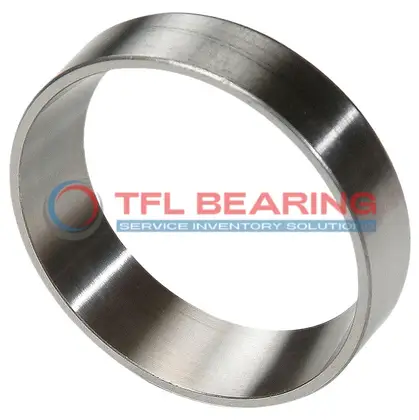

26300 Single Cups (Imperial)

26300 Single Cups (Imperial)

The 26300 is a single cup tapered roller bearing with a 3-inch outer diameter and 0.625-inch width, made from sturdy chrome steel. It fits well with various tapered roller bearings, including Timken models, ensuring easy replacements.

Its standard cup design provides reliable support for tapered rollers, handling loads efficiently in temperatures from -30°C to 110°C. The ABEC-1 rating ensures decent precision for general industrial use.

The cup’s dimensions (2.52″ to 3″) and tolerances make it suitable for consistent performance in assemblies. It’s RoHS and REACH compliant, meeting safety standards.

Ideal for machinery requiring tapered roller support, such as gearboxes or wheel hubs. Its durable construction ensures long service life in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 26300
  • Brand TFL
  • Interchangeable Timken
  • Size 2.52" x 3" x 0.625"
  • Outer Dia 3"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.06"
  • Cup Frontface Backing Diameter 2.62"
  • Cup Backface Backing Diameter 2.52"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 26093-26300 , 26100-26300 , 26112-26300 , 26118-26300 , 26126-26300 , 26126X-26300 , 26131-26300 , 26132-26300
  • Cups Type Standard
  • Series 26000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Core Advantages of 26300 Single Cups

26300 Single Cups are crafted from chrome steel, offering excellent durability and resistance to wear.
Their precise outer diameter tolerance of +0.001″ to 0 ensures a snug fit in various applications.

The standard cup design works seamlessly with multiple tapered roller bearings, providing versatility.
With a temperature range of -30° to 110°C, they perform reliably in diverse conditions.

The ABEC-1 rating guarantees consistent quality for smooth operation.
Compliant with RoHS and REACH standards, they meet environmental and safety requirements.

Application

Industrial Uses of 26300 Bearing
26300 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered design handles radial and axial loads efficiently. The chrome steel construction ensures durability in demanding environments.

What Makes 26300 Bearing a Preferred Choice?
In automotive applications, 26300 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 26300 Bearing
For industrial conveyor systems, 26300 Bearing offers smooth operation and long service life, even in high-load conditions. The standard cup design simplifies installation and maintenance.

Automotive vs Industrial: Applications of 26300 Bearing
26300 Bearing excels in both automotive and industrial settings, thanks to its versatile tapered roller design. Whether in truck axles or mining equipment, it delivers consistent performance.

Perfect Fit for Automation: 26300 Bearing
In automated production lines, 26300 Bearing supports robotic arms and assembly systems with precision. Its ABEC-1 rating ensures reliable operation in repetitive motion applications.
