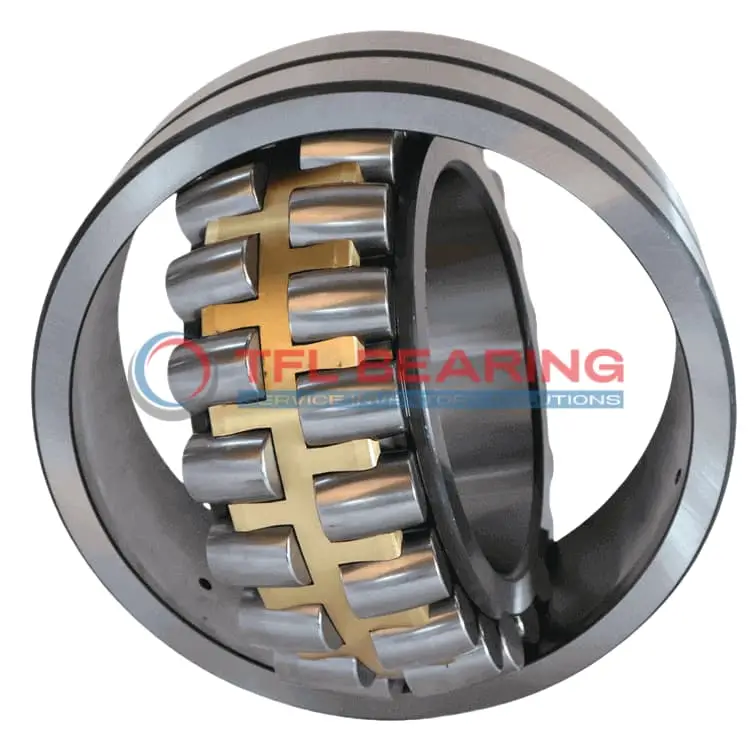

24196 ECAK30/W77 Double Row Spherical Roller Bearing

24196 ECAK30/W77 Double Row Spherical Roller Bearing

The 24196 ECAK30/W77 is a double-row spherical roller bearing with a large 480mm bore and 790mm outer diameter, built from tough chrome steel. It handles combined loads up to 2067793 lbf and operates smoothly at speeds up to 400 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:30) allows for secure fitting. The bearing works in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or large gearboxes where high radial and axial loads are present.

Weighing 585kg, it’s a robust unit designed for demanding applications. Compliant with RoHS and REACH standards for safe industrial use. Lubrication grooves and holes (12mm) simplify maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24196 ECAK30/W77
  • Brand TFL
  • Interchangeable SKF
  • Size 480 x 790 x 308 mm
  • Bore Dia 480 mm
  • Bore Dia Tolerance +0.045mm to 0
  • Outer Dia 790 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 308 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 564 mm
  • Shoulder/Recess Dia Of Outer Ring 678 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:30
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2067793 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 585 kg

Features

Performance Features of 24196 ECAK30/W77 Bearing

24196 ECAK30/W77 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 2,067,793 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and extending operational life.
With a maximum speed of 400 rpm, it maintains reliable performance under demanding conditions.

24196 ECAK30/W77 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its tapered bore design simplifies installation, ensuring secure fitting and alignment.

The lubrication groove and hole design in 24196 ECAK30/W77 Bearing promote efficient grease distribution.
This feature helps maintain smooth operation and reduces maintenance frequency.

Application

Industrial Uses of 24196 ECAK30/W77 Bearing
24196 ECAK30/W77 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row spherical design handles both radial and axial loads effortlessly.
The brass cage and chrome steel construction ensure durability even in harsh operating conditions, making it a reliable choice for industrial applications.

Where Is 24196 ECAK30/W77 Bearing Used?
You’ll often find 24196 ECAK30/W77 Bearing in large-scale conveyor systems and paper mills, where its high load capacity and tapered bore provide stable performance.
Its metric sizing and compatibility with SKF models make it a versatile option for global machinery standards.

Built for Heavy-Duty Use: 24196 ECAK30/W77 Bearing
24196 ECAK30/W77 Bearing excels in wind turbine gearboxes, where its spherical rollers accommodate misalignment and reduce stress on components.
The lubrication groove design ensures smooth operation, even at maximum speeds of 400 rpm.

Automotive vs Aerospace: Applications of 24196 ECAK30/W77 Bearing
In automotive applications, 24196 ECAK30/W77 Bearing supports large drivetrains and axles, thanks to its robust load-handling capabilities.
For aerospace, its temperature range up to 200°C makes it suitable for auxiliary power units and landing gear systems.

Practical Applications of 24196 ECAK30/W77 Bearing
24196 ECAK30/W77 Bearing is ideal for steel mills, where its high dynamic radial load capacity ensures long service life under extreme conditions.
The open seal design allows for easy maintenance, reducing downtime in critical industrial processes.
