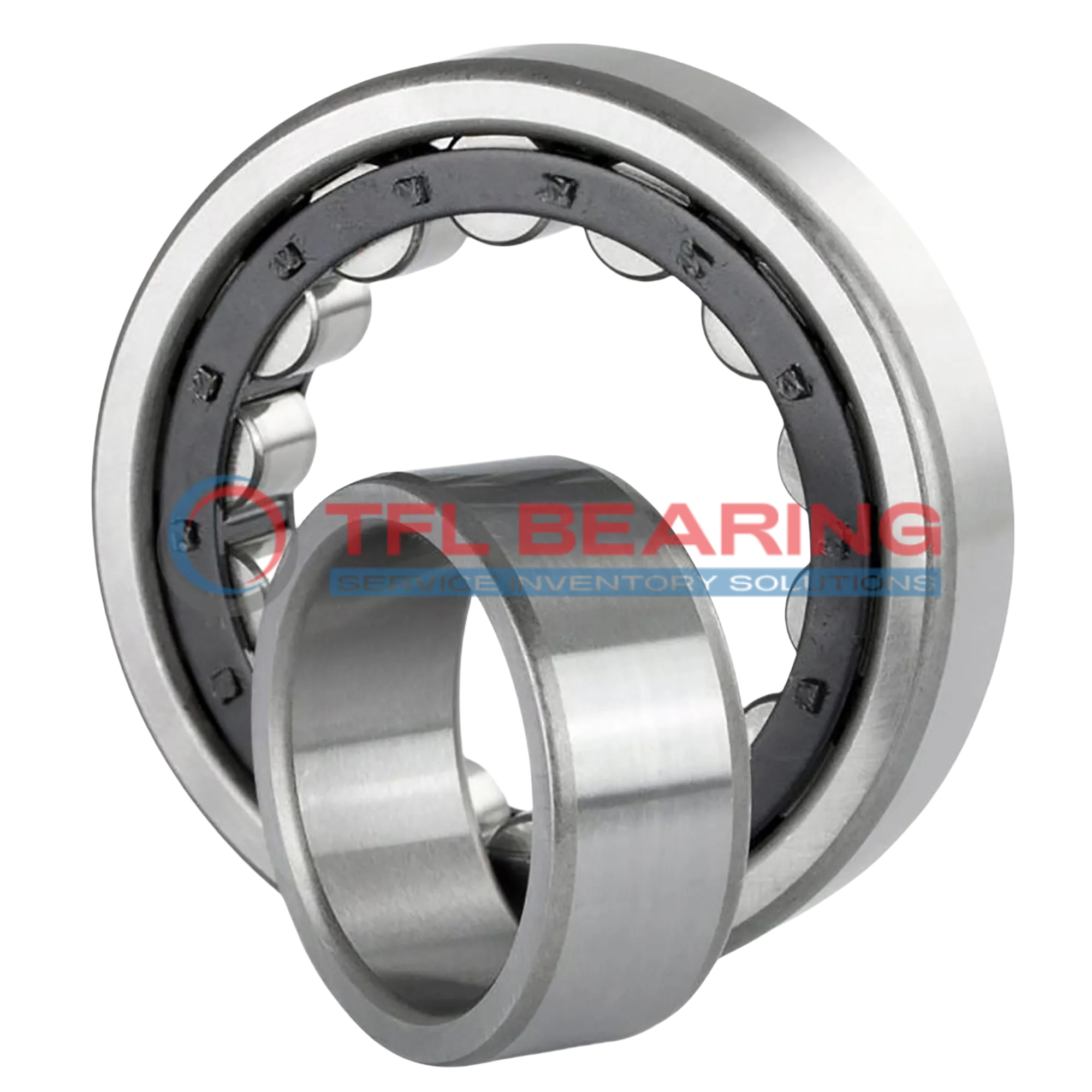

Single Row Cylindrical Roller Bearings With Inner Ring NU 2212 ECPH

Single Row Cylindrical Roller Bearings With Inner Ring NU 2212 ECPH

The NU 2212 ECPH is a single-row cylindrical roller bearing with a 60mm bore and 110mm outer diameter, crafted from durable chrome steel. Its compact 28mm width makes it suitable for tight spaces while handling combined loads up to 32850 lbf.

With a PEEK cage centred on the rollers, it offers smooth operation at speeds up to 8000 RPM. The open design allows easy lubrication with grease or oil, and it performs reliably in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, ideal for industrial machinery or heavy-duty applications where radial and axial loads are present. Weighing 1.05kg, it balances strength and manageability.

Compliant with RoHS and REACH standards, it’s a practical choice for engineers and maintenance teams needing long-lasting performance. The 1.5mm chamfer edges ensure easier installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 2212 ECPH
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.5 mm
  • Permissible Axial Displacement(max.) 1.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PEEK cage, roller centred
  • Dynamic Radial Load 32850 lbf
  • Static Radial Load 34425 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.05 kg
  • Shoulder Dia Of Outer Ring 95.1 mm
  • Raceway Diameter Of Inner Ring 72 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 2212 ECPH dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 2212 ECPH Bearing

NU 2212 ECPH Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 32850 lbf, ensuring reliable performance in various applications.

The PEEK cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 8000 rpm, it balances durability and efficiency in demanding conditions.

NU 2212 ECPH Bearing operates smoothly in temperatures ranging from -30° to 110 °C.
Its open design allows for easy lubrication with either grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 1.5 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and long service life.

Application

Key Fields for NU 2212 ECPH Bearing
NU 2212 ECPH Bearing is commonly used in industrial machinery, especially in gearboxes and electric motors, where its cylindrical roller design handles combined loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

Where Is NU 2212 ECPH Bearing Used?
In automotive applications, NU 2212 ECPH Bearing supports components like transmissions and differentials, thanks to its robust chrome steel construction. The PEEK cage ensures smooth performance even under heavy radial loads.

Built for Heavy-Duty Use: NU 2212 ECPH Bearing
NU 2212 ECPH Bearing excels in automation systems, such as robotic arms and conveyor belts, where precision and durability are key. Its metric sizing ensures compatibility with a wide range of machinery.

Medical vs Industrial: Where NU 2212 ECPH Bearing Excels
NU 2212 ECPH Bearing is a reliable choice for medical imaging devices, offering consistent performance under demanding conditions. In industrial settings, it’s often found in pumps and compressors, where its high load capacity shines.
