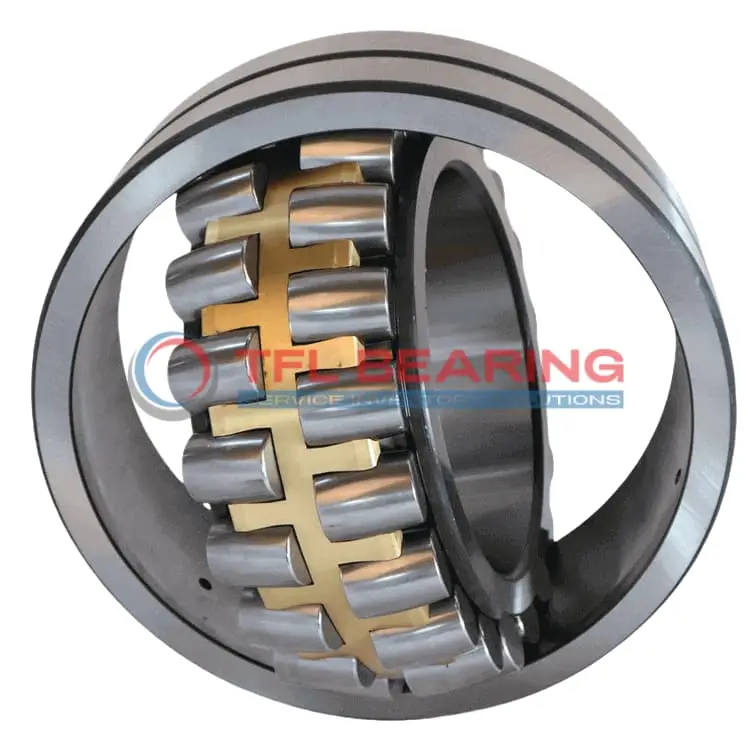

24196 ECA/C3W33 Double Row Spherical Roller Bearing

24196 ECA/C3W33 Double Row Spherical Roller Bearing

The 24196 ECA/C3W33 is a double-row spherical roller bearing with a large 480mm bore and 790mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 2067793 lbf and runs smoothly at speeds up to 400 RPM.

Its brass cage and open design ensure durability, while the C3 radial clearance allows for thermal expansion. The bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments.

With lubrication grooves and holes, maintenance is straightforward. This model is interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for heavy-duty applications like mining equipment or large industrial machinery, where high radial loads and misalignment are common. Weighing 595kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24196 ECA/C3W33
  • Brand TFL
  • Interchangeable SKF
  • Size 480 x 790 x 308 mm
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 790 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 308 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 564 mm
  • Shoulder/Recess Dia Of Outer Ring 678 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.7.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 2067793 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 595 kg

Features

Performance Features of 24196 ECA/C3W33 Bearing

24196 ECA/C3W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 2,067,793 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller alignment, reducing friction and enhancing durability.
With a maximum speed of 400 rpm, it balances performance and reliability in demanding environments.

24196 ECA/C3W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance under varying conditions.

The lubrication groove and holes in 24196 ECA/C3W33 Bearing simplify maintenance, extending service life.
Its double-row spherical design accommodates misalignment, providing reliable operation in challenging setups.

Application

Industrial Uses of 24196 ECA/C3W33 Bearing
24196 ECA/C3W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

In wind turbines, 24196 ECA/C3W33 Bearing supports the main shaft, offering reliability in variable weather conditions. Its C3 radial clearance allows for thermal expansion, making it suitable for large-scale energy applications.

For mining equipment, 24196 ECA/C3W33 Bearing’s chrome steel construction withstands abrasive environments. The lubrication groove design simplifies maintenance, reducing downtime in critical operations.

Where Is 24196 ECA/C3W33 Bearing Used?
24196 ECA/C3W33 Bearing is found in paper mills, where its spherical roller design accommodates misalignment in heavy rollers. The metric sizing ensures compatibility with European machinery standards.

In steel production, 24196 ECA/C3W33 Bearing handles extreme loads in rolling mills. Its high-temperature tolerance up to 200°C makes it a dependable choice for hot rolling processes.

Built for Heavy-Duty Use: 24196 ECA/C3W33 Bearing
24196 ECA/C3W33 Bearing excels in construction equipment like cranes, where its combined load capacity supports lifting operations. The open seal design allows for easy lubrication in dusty environments.

For marine applications, 24196 ECA/C3W33 Bearing’s corrosion-resistant materials ensure longevity in saltwater conditions. Its large bore diameter fits seamlessly into propeller shaft systems.

Automotive vs Aerospace: Applications of 24196 ECA/C3W33 Bearing
In automotive testing rigs, 24196 ECA/C3W33 Bearing withstands high-speed vibrations, ensuring accurate performance measurements. Its brass cage reduces friction, extending service life.

For aerospace ground equipment, 24196 ECA/C3W33 Bearing’s precision supports aircraft loading systems. The C3 clearance accommodates thermal shifts during extreme temperature changes.
