24060 CC/C4W33VA991 Double Row Spherical Roller Bearing

24060 CC/C4W33VA991 Double Row Spherical Roller Bearing

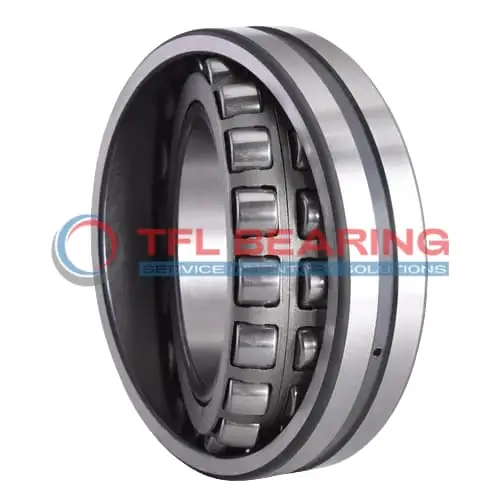

The 24060 CC/C4W33VA991 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 634186 lbf and runs smoothly at speeds up to 1900 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing operates reliably in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 96kg, it’s designed for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24060 CC/C4W33VA991
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 160 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 160 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 331 mm
  • Shoulder/Recess Dia Of Outer Ring 400 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 634186 lbf
  • Static Radial Load 1067842 lbf
  • Max Speed 1900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 96 kg

Features

Performance Features of 24060 CC/C4W33VA991 Bearing

24060 CC/C4W33VA991 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 634186 lbf, ensuring robust performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the operational life of the bearing.

24060 CC/C4W33VA991 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, ensuring smooth rotation even at high speeds up to 1900 rpm.

With a C4 radial clearance, this bearing accommodates thermal expansion in demanding conditions.
The lubrication groove and holes ensure consistent oil flow, reducing friction and wear.

24060 CC/C4W33VA991 Bearing’s cylindrical bore simplifies installation and alignment.
Its open design allows for easy maintenance, making it a reliable choice for industrial applications.

Application

Industrial Uses of 24060 CC/C4W33VA991 Bearing
24060 CC/C4W33VA991 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial loads with ease. The spherical roller construction also compensates for misalignment, ensuring smooth operation in tough conditions.

Where Is 24060 CC/C4W33VA991 Bearing Used?
In mining equipment, 24060 CC/C4W33VA991 Bearing supports large rotating components, thanks to its robust chrome steel construction. The C4 radial clearance allows for thermal expansion, making it ideal for high-temperature environments.

Built for Heavy-Duty Use: 24060 CC/C4W33VA991 Bearing
24060 CC/C4W33VA991 Bearing excels in paper mills and steel plants, where its dynamic load capacity of 634186 lbf ensures reliability. The steel cage enhances durability, even under continuous heavy loads.

Automotive vs Aerospace: Applications of 24060 CC/C4W33VA991 Bearing
While 24060 CC/C4W33VA991 Bearing isn’t typical in aerospace, it’s a staple in large commercial vehicles like buses and trucks. Its combined load handling makes it suitable for drivetrain components.

Key Fields for 24060 CC/C4W33VA991 Bearing
24060 CC/C4W33VA991 Bearing is often found in wind turbines, where its ability to handle misalignment and heavy loads is crucial. The open design simplifies lubrication, extending service life in remote installations.
