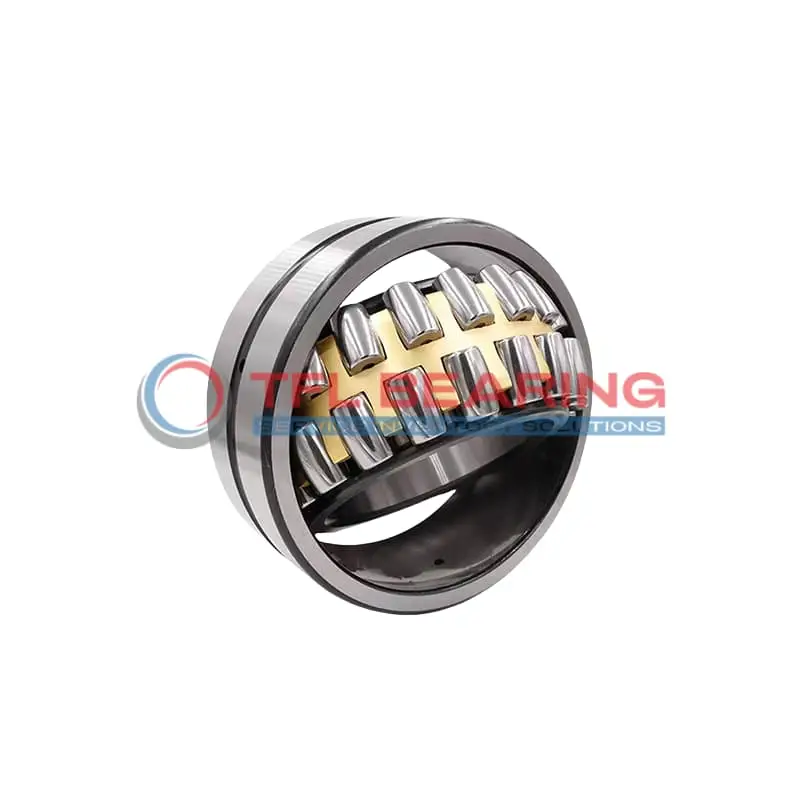

24060 CAC/W33 Double Row Spherical Roller Bearing

24060 CAC/W33 Double Row Spherical Roller Bearing

The 24060 CAC/W33 is a double-row spherical roller bearing with a 300mm bore and 460mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 614852 lbf and operates smoothly at speeds up to 1200 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a lubrication groove and hole, maintenance is straightforward. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for heavy-duty applications like industrial machinery or mining equipment, where high radial loads are common. Weighing 97kg, it’s built for strength and long-term use, complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24060 CAC/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 300 x 460 x 160 mm
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 160 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 344 mm
  • Shoulder/Recess Dia Of Outer Ring 400 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 614852 lbf
  • Static Radial Load 101164 lbf
  • Max Speed 1200 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 97 kg
  • Price （US$） US$3,878.88

Features

Performance Features of 24060 CAC/W33 Bearing

24060 CAC/W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 614852 lbf, ensuring reliable operation in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending service life.
With a maximum speed of 1200 rpm, it delivers consistent performance under demanding conditions.

24060 CAC/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, enhancing durability in various industrial settings.

The lubrication groove and hole design ensure proper oil distribution, reducing maintenance needs.
This makes 24060 CAC/W33 Bearing a practical choice for long-term use.

Application

Industrial Uses of 24060 CAC/W33 Bearing
The 24060 CAC/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. Its brass cage and chrome steel rollers ensure durability in demanding industrial environments.

Where Is 24060 CAC/W33 Bearing Used?
You’ll often find 24060 CAC/W33 Bearing in mining equipment, where its high dynamic radial load capacity supports heavy-duty operations. The lubrication groove design also makes it suitable for continuous use in harsh conditions.

Built for Heavy-Duty Use: 24060 CAC/W33 Bearing
24060 CAC/W33 Bearing excels in applications like paper mills and steel plants, thanks to its spherical roller design that accommodates misalignment. The wide temperature range allows it to perform reliably in both hot and cold settings.

Automotive vs Aerospace: Applications of 24060 CAC/W33 Bearing
In automotive applications, 24060 CAC/W33 Bearing is used in large trucks and buses for its load-handling capabilities. For aerospace, its precision and reliability make it a fit for ground support equipment.

Practical Applications of 24060 CAC/W33 Bearing
24060 CAC/W33 Bearing is ideal for wind turbines, where its robust construction handles variable loads and harsh weather. The metric sizing ensures compatibility with international machinery standards.
