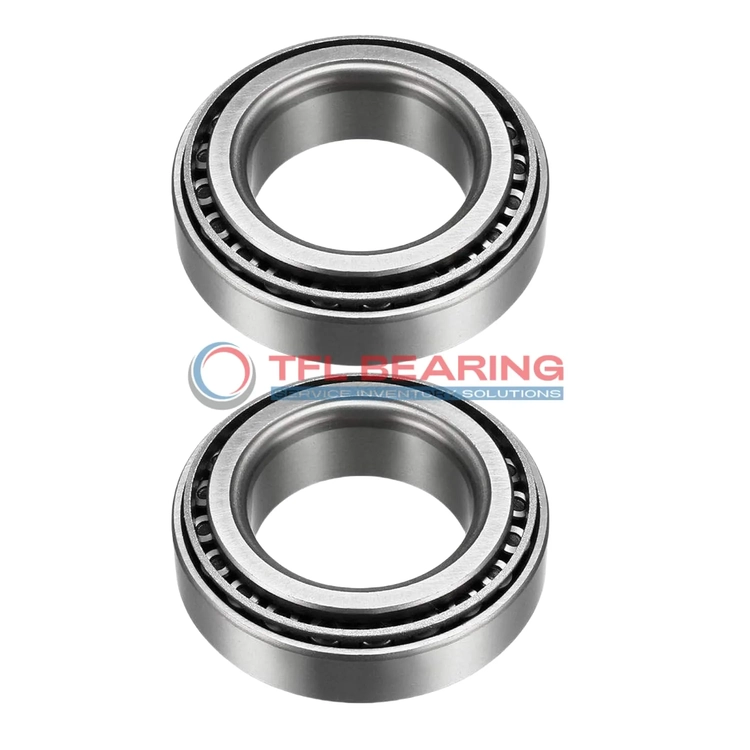

TS (Single Row Tapered Roller Bearings) (Imperial) 29676-29624

TS (Single Row Tapered Roller Bearings) (Imperial) 29676-29624

The 29676-29624 is a single-row tapered roller bearing with a 2.75″ bore and 4.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 2.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29676-29624
  • Brand TFL
  • Interchangeable Timken
  • Size 2.75" x 4.5" x 1.0937"
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0937"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.66"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.33"
  • Cup Backface Backing Diameter 4.06"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29676
  • Cup Part Number 29624
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.3 lb

Features

How Is 29676-29624 Bearing Engineered for Reliability?

29676-29624 Bearing features chrome steel rings and rollers, providing strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, ensuring reliable performance in demanding conditions.
The steel cage keeps the tapered rollers aligned, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

What Makes 29676-29624 Bearing Suitable for High-Temperature Applications?

29676-29624 Bearing is built with chrome steel components, offering durability in high-temperature settings.
It operates reliably within a range of -30° to 110°C, maintaining performance under thermal stress.
The tapered roller design ensures efficient load distribution, reducing heat buildup.
Its steel cage further enhances stability, even in challenging conditions.

Designed for Durability: 29676-29624 Bearing

29676-29624 Bearing’s chrome steel construction ensures long-lasting performance under heavy loads.
The tapered rollers provide smooth operation, minimising friction and wear.
With a static radial load capacity of 37,200 lbf, it handles demanding applications with ease.
Its standard radial clearance allows for flexibility in various operating conditions.

Steel vs Ceramic Bearings: Strengths of 29676-29624 Bearing

29676-29624 Bearing uses chrome steel for both rings and rollers, balancing cost and performance.
This material choice provides excellent strength and wear resistance in industrial applications.
The steel cage ensures proper roller alignment, contributing to smooth operation.
Its ABEC-1 rating confirms consistent precision for general-purpose use.

Application

Industrial Uses of 29676-29624 Bearing
29676-29624 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 29676-29624 Bearing fits well in wheel hubs and drivetrains, providing reliable performance under radial and thrust loads. Its inch sizing makes it a popular choice for American-made vehicles.

For industrial gearboxes, 29676-29624 Bearing’s open design allows for easy lubrication, extending service life. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is 29676-29624 Bearing Used?
29676-29624 Bearing can be found in agricultural machinery, supporting components like PTO shafts. Its robust design handles the vibrations and shocks common in farming equipment.

The bearing also works well in mining equipment, where its tapered rollers manage heavy radial and axial loads. The standard radial clearance ensures smooth operation in dusty conditions.

Built for Heavy-Duty Use: 29676-29624 Bearing
29676-29624 Bearing is ideal for conveyor systems in manufacturing plants, where its combined load capacity keeps operations running smoothly. The ABEC-1 rating balances precision and cost-effectiveness.

In material handling equipment, 29676-29624 Bearing’s chrome steel rollers resist wear, reducing maintenance needs. The inch measurements simplify replacements in older machinery.

Automotive vs Aerospace: Applications of 29676-29624 Bearing
In automotive settings, 29676-29624 Bearing supports axles and transmissions, offering reliable performance. Its compatibility with Timken bearings makes it a versatile option for repairs.

For aerospace ground equipment, 29676-29624 Bearing handles the heavy loads of aircraft tugs and loaders. The temperature range ensures functionality in various weather conditions.
