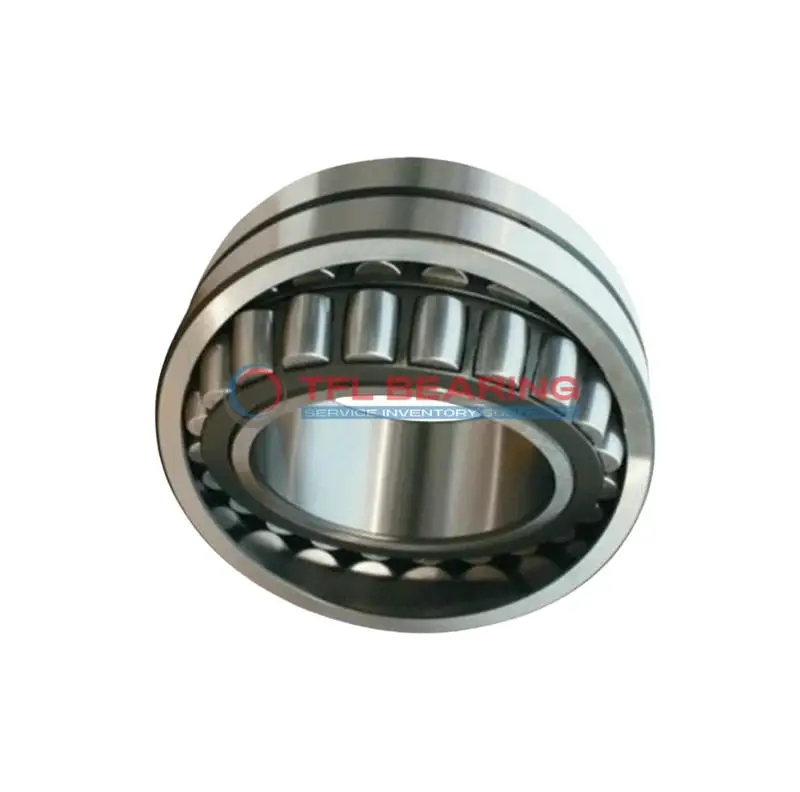

240/600 BC Double Row Spherical Roller Bearing

240/600 BC Double Row Spherical Roller Bearing

The 240/600 BC is a double-row spherical roller bearing with a large 600mm bore and 870mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 1911326 lbf and operates smoothly at speeds up to 45 RPM.

Its open design requires regular lubrication, while the steel cage ensures durability under heavy loads. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy machinery like crushers or large gearboxes where high radial and axial loads are present.

Weighing 520kg, it’s designed for robust industrial use. Compliant with RoHS and REACH standards for safety and environmental considerations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 240/600 BC
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 870 x 272 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 272 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 682 mm
  • Shoulder/Recess Dia Of Outer Ring 784 mm
  • Width Of Lubrication Groove 46.1 mm
  • Diameter Of Lubrication Hole 15 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 1911326 lbf
  • Static Radial Load 3664386 lbf
  • Max Speed 45 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 520 kg

Features

Performance Features of 240/600 BC Bearing

240/600 BC Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 1,911,326 lbf, making it suitable for heavy-duty industrial applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 45 rpm, it balances strength and stability in demanding environments.

240/600 BC Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

Application

Industrial Uses of 240/600 BC Bearing
The 240/600 BC Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles high radial and axial loads.
Its chrome steel construction ensures durability in harsh environments, making it a reliable choice for industrial applications.

Where Is 240/600 BC Bearing Used?
You’ll often find the 240/600 BC Bearing in large-scale conveyor systems and wind turbines, where its spherical roller design accommodates misalignment.
The open seal type allows for easy lubrication, which is essential for maintaining performance in continuous operation.

Built for Heavy-Duty Use: 240/600 BC Bearing
The 240/600 BC Bearing excels in paper mills and steel plants, where its high load capacity and temperature resistance are key.
Its metric sizing ensures compatibility with a wide range of industrial equipment, simplifying replacements.

Automotive vs Aerospace: Applications of 240/600 BC Bearing
In automotive settings, the 240/600 BC Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment.
The bearing’s combined load capability makes it versatile for different industries, though its size limits high-speed applications.

Key Fields for 240/600 BC Bearing
The 240/600 BC Bearing is ideal for hydropower plants, where its ability to handle heavy loads and misalignment is crucial.
Its steel cage and rollers provide long service life, reducing downtime in critical operations.
