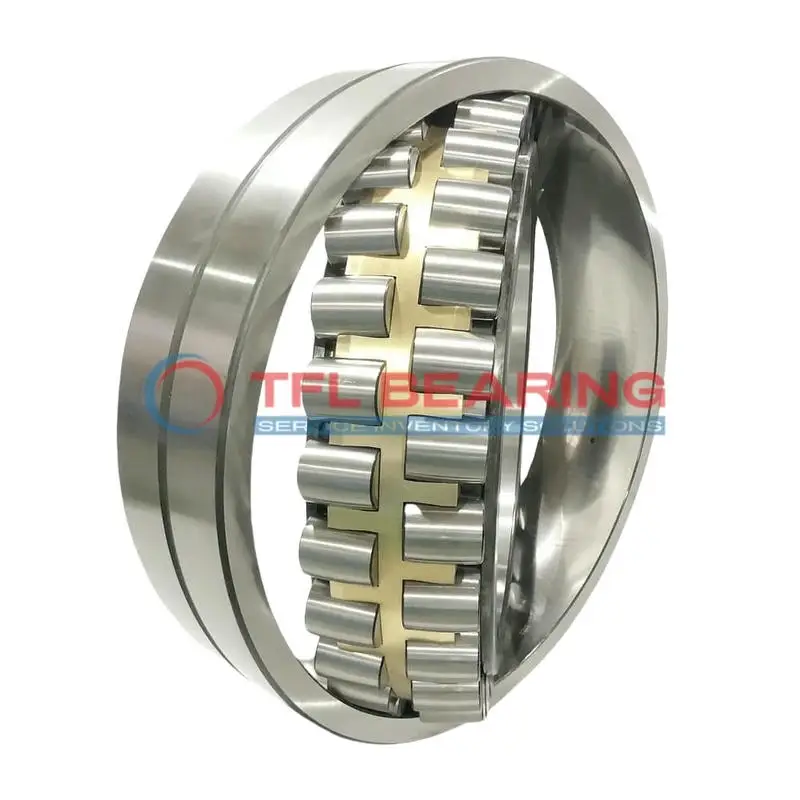

240/600 ECA/C2HW33RE10 Double Row Spherical Roller Bearing

240/600 ECA/C2HW33RE10 Double Row Spherical Roller Bearing

The 240/600 ECA/C2HW33RE10 is a double-row spherical roller bearing with a large 600mm bore and 870mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1,928,861 lbf and runs smoothly at speeds up to 560 RPM.

Its brass cage and open design ensure durability, while the lubrication groove and holes make maintenance straightforward. The bearing operates well in temperatures from -30°C to 200°C.

With a C2 radial clearance, it offers reliable performance under heavy loads. Ideal for industrial machinery like crushers or large gearboxes where robust support is needed.

Weighing 540kg, it’s a heavy-duty option designed for long-lasting use. Compliant with RoHS and REACH standards for safe handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 240/600 ECA/C2HW33RE10
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 870 x 272 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 272 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 675 mm
  • Shoulder/Recess Dia Of Outer Ring 774 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1928861 lbf
  • Static Radial Load 3821752 lbf
  • Max Speed 560 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 540 kg

Features

Performance Features of 240/600 ECA/C2HW33RE10 Bearing

240/600 ECA/C2HW33RE10 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,928,861 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth roller movement, reducing friction and wear.
With a maximum speed of 560 rpm, it delivers reliable performance under demanding conditions.

240/600 ECA/C2HW33RE10 Bearing operates in temperatures from -30° to 200°C, ensuring versatility.
Its C2 radial clearance provides optimal performance for various industrial uses.

The lubrication groove and hole design simplify maintenance, extending service life.
This bearing is ideal for applications requiring durability and precision.

Application

Industrial Uses of 240/600 ECA/C2HW33RE10 Bearing
240/600 ECA/C2HW33RE10 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row spherical design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

In wind turbines, 240/600 ECA/C2HW33RE10 Bearing supports the main shaft, thanks to its robust construction and ability to withstand misalignment. Its large bore size makes it ideal for high-torque applications.

For paper mill machinery, 240/600 ECA/C2HW33RE10 Bearing’s chrome steel rollers provide durability in wet and abrasive environments. The C2 radial clearance allows for thermal expansion during continuous operation.

In steel production plants, 240/600 ECA/C2HW33RE10 Bearing excels in rolling mills, where its high static load capacity ensures reliability. The lubrication groove design simplifies maintenance in harsh conditions.

Where Is 240/600 ECA/C2HW33RE10 Bearing Used?
240/600 ECA/C2HW33RE10 Bearing is found in large gearboxes, particularly in marine and power generation industries. Its metric sizing ensures compatibility with European and Asian equipment standards.

The bearing’s high temperature tolerance makes it suitable for kilns and dryers in cement plants. The open seal design allows for easy relubrication, extending service life.

Built for Heavy-Duty Use: 240/600 ECA/C2HW33RE10 Bearing
240/600 ECA/C2HW33RE10 Bearing is a go-to choice for construction equipment like cranes and excavators. Its spherical rollers compensate for shaft misalignment, reducing wear.

In oil and gas applications, 240/600 ECA/C2HW33RE10 Bearing handles the extreme loads of drilling rigs. The brass cage resists corrosion, even in salty environments.

Light-Duty vs Heavy-Duty: Best Uses for 240/600 ECA/C2HW33RE10 Bearing
For light-duty applications, 240/600 ECA/C2HW33RE10 Bearing can be found in large fans and pumps, where its precision ensures quiet operation. The C2 clearance provides flexibility in variable load conditions.

In heavy-duty scenarios, 240/600 ECA/C2HW33RE10 Bearing shines in hydroelectric turbines, where its dynamic load capacity keeps systems running smoothly. The lubrication holes simplify servicing in hard-to-reach areas.
