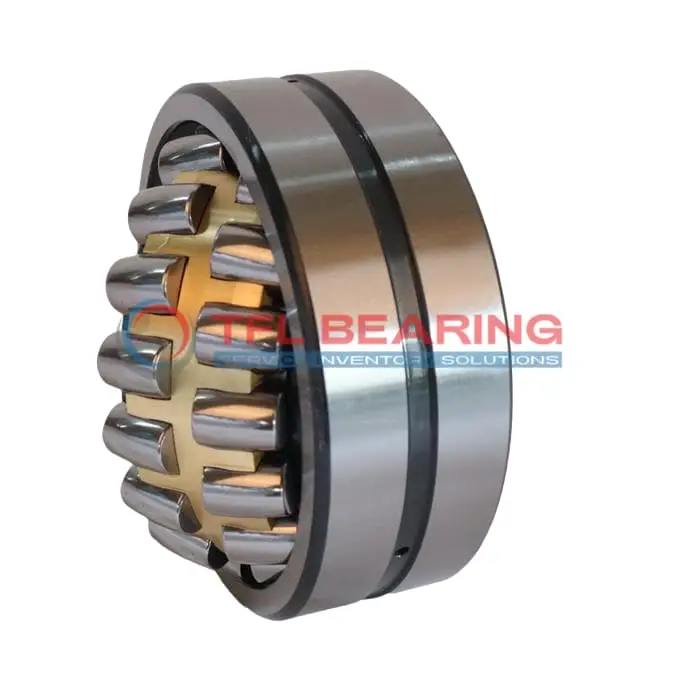

239/600 CA/C08W33 Double Row Spherical Roller Bearing

239/600 CA/C08W33 Double Row Spherical Roller Bearing

The 239/600 CA/C08W33 is a double-row spherical roller bearing with a large 600mm bore and 800mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 904182 lbf and operates smoothly at speeds up to 750 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The bearing features a lubrication groove and holes for convenient maintenance.

This model is interchangeable with SKF bearings, making it a reliable choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where high radial loads are common.

Weighing 215kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 239/600 CA/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 600 x 800 x 150 mm
  • Bore Dia 600 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 800 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 150 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 671 mm
  • Shoulder/Recess Dia Of Outer Ring 744 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 904182 lbf
  • Static Radial Load 1865914 lbf
  • Max Speed 750 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 215 kg
  • Price （US$） US$9,667.58

Features

Performance Features of 239/600 CA/C08W33 Bearing

239/600 CA/C08W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 904182 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 750 rpm, it balances strength and efficiency for industrial use.

239/600 CA/C08W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its double-row spherical design accommodates misalignment, enhancing durability under challenging conditions.

The lubrication groove and hole design ensure consistent oil distribution, minimising maintenance needs.
This bearing is ideal for applications requiring high load capacity and long service life.

Application

Industrial Uses of 239/600 CA/C08W33 Bearing
239/600 CA/C08W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently.
The spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

What Makes 239/600 CA/C08W33 Bearing a Preferred Choice?
In mining equipment, 239/600 CA/C08W33 Bearing’s high dynamic radial load capacity ensures reliability under extreme conditions.
Its brass cage and chrome steel rollers provide durability, even in high-temperature applications up to 200°C.

Built for Heavy-Duty Use: 239/600 CA/C08W33 Bearing
For wind turbines, 239/600 CA/C08W33 Bearing supports the main shaft, where its P5 radial run-out precision enhances performance.
The lubrication groove and hole design simplify maintenance, extending service life in remote installations.

Automotive vs Aerospace: Applications of 239/600 CA/C08W33 Bearing
In large vehicles like buses, 239/600 CA/C08W33 Bearing handles heavy axle loads with ease.
While not typical in aerospace, its metric sizing and high static radial load make it suitable for ground support equipment.

Where Is 239/600 CA/C08W33 Bearing Used?
You’ll find 239/600 CA/C08W33 Bearing in paper mills, where its spherical rollers accommodate shaft deflections.
The open seal design allows for custom lubrication, adapting to various industrial needs.
