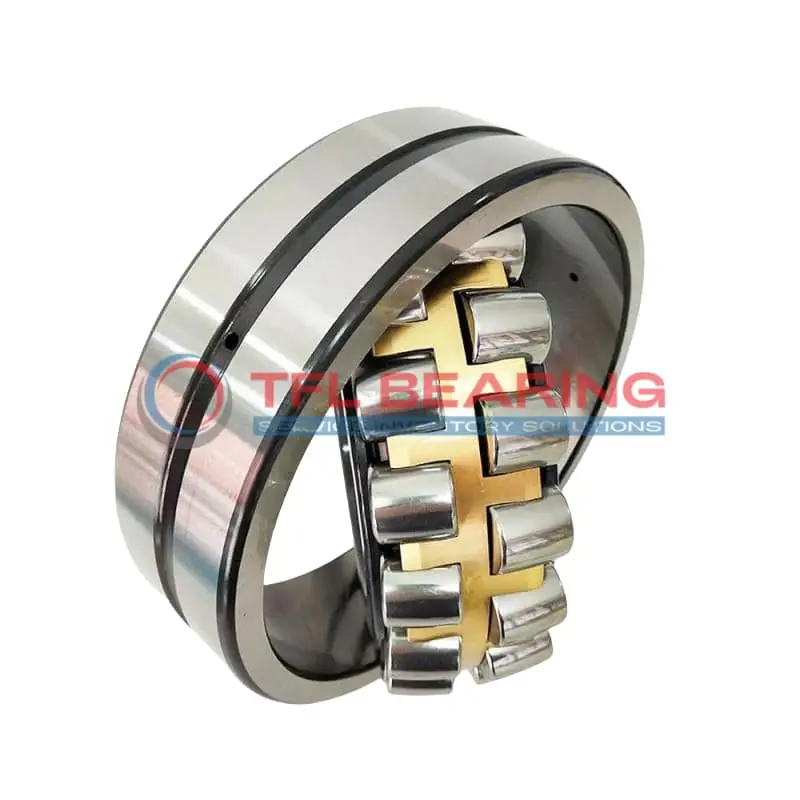

239/530 CAK/C083W507 Double Row Spherical Roller Bearing

239/530 CAK/C083W507 Double Row Spherical Roller Bearing

The 239/530 CAK/C083W507 is a double-row spherical roller bearing with a large 530mm bore and 710mm outer diameter, built from tough chrome steel. It handles heavy combined loads up to 743668 lbf and runs smoothly at speeds up to 900 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) simplifies installation. The bearing operates in temperatures from -30°C to 200°C and requires regular lubrication for optimal performance.

With a C3 radial clearance and P5 precision, it suits high-demand applications like industrial gearboxes or heavy machinery. Weighing 155kg, it’s a robust choice for large-scale equipment.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards, making it a reliable option for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 239/530 CAK/C083W507
  • Brand TFL
  • Interchangeable SKF
  • Size 530 x 710 x 136 mm
  • Bore Dia 530 mm
  • Bore Dia Tolerance +0.07mm to 0
  • Outer Dia 710 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 136 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 594 mm
  • Shoulder/Recess Dia Of Outer Ring 661 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 743668 lbf
  • Static Radial Load 150622 lbf
  • Max Speed 900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 155 kg
  • Price （US$） US$9,432.31

Features

Performance Features of 239/530 CAK/C083W507 Bearing

239/530 CAK/C083W507 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 743,668 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures smooth roller movement, reducing friction and enhancing durability.
With a maximum speed of 900 rpm, it maintains reliable performance under demanding conditions.

239/530 CAK/C083W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reducing maintenance efforts.

The double-row spherical roller construction accommodates misalignment, improving operational stability.
Lubrication grooves and holes facilitate consistent lubrication, extending the bearing’s service life.

Application

Industrial Uses of 239/530 CAK/C083W507 Bearing
239/530 CAK/C083W507 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The brass cage ensures smooth operation even under high stress.

In wind turbines, 239/530 CAK/C083W507 Bearing supports the main shaft, thanks to its high dynamic radial load capacity. The tapered bore design simplifies installation and maintenance in remote locations.

For mining equipment, 239/530 CAK/C083W507 Bearing’s spherical roller construction accommodates misalignment, reducing wear in harsh conditions. Its chrome steel rollers provide long-lasting performance in dusty environments.

What Makes 239/530 CAK/C083W507 Bearing a Preferred Choice?
239/530 CAK/C083W507 Bearing is ideal for paper mills, where its C3 radial clearance compensates for thermal expansion. The lubrication groove design ensures consistent performance in high-speed operations.

In steel plants, 239/530 CAK/C083W507 Bearing withstands extreme temperatures, making it reliable for rolling mills. Its metric sizing ensures compatibility with global industrial standards.

Built for Heavy-Duty Use: 239/530 CAK/C083W507 Bearing
239/530 CAK/C083W507 Bearing excels in construction equipment like cranes, where its static radial load capacity ensures stability. The open seal type allows for easy lubrication in the field.

For marine applications, 239/530 CAK/C083W507 Bearing’s corrosion-resistant materials handle saltwater exposure. Its high-temperature range makes it suitable for engine components.
