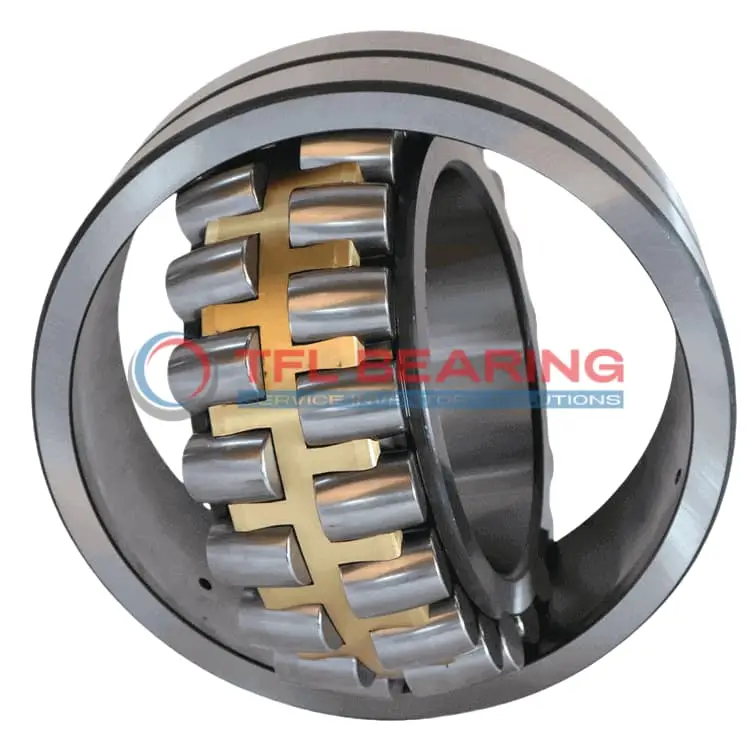

239/500 CA/C08W507 Double Row Spherical Roller Bearing

239/500 CA/C08W507 Double Row Spherical Roller Bearing

The 239/500 CA/C08W507 is a double-row spherical roller bearing with a large 500mm bore and 670mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 667008 lbf and operates smoothly at speeds up to 950 RPM.

Its brass cage ensures durability, while the open design allows for easy lubrication through the 12mm holes. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a radial run-out of P5 and CN clearance, it offers precise performance for heavy-duty applications. Ideal for use in industrial machinery, mining equipment, or large gearboxes where high radial loads are common.

Weighing 130kg, this robust bearing is interchangeable with SKF models and complies with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 239/500 CA/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 500 x 670 x 128 mm
  • Bore Dia 500 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 670 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 128 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 561 mm
  • Shoulder/Recess Dia Of Outer Ring 622 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 667008 lbf
  • Static Radial Load 1348854 lbf
  • Max Speed 950 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 130 kg
  • Price （US$） US$6,843.81

Features

Performance Features of 239/500 CA/C08W507 Bearing

239/500 CA/C08W507 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 667008 lbf, making it suitable for heavy-duty industrial applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 950 rpm, it maintains stable performance under high-stress conditions.

239/500 CA/C08W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring reliable operation in demanding environments.

The lubrication groove and hole design in 239/500 CA/C08W507 Bearing simplify maintenance.
This feature helps extend service life while reducing downtime for lubrication.

Application

Industrial Uses of 239/500 CA/C08W507 Bearing
The 239/500 CA/C08W507 Bearing is commonly used in heavy machinery like crushers and mining equipment, where its double-row design handles high radial and axial loads. Its brass cage and chrome steel construction ensure durability in harsh operating conditions.

What Makes 239/500 CA/C08W507 Bearing a Preferred Choice?
In wind turbines, 239/500 CA/C08W507 Bearing supports the main shaft, offering reliable performance under varying loads and speeds. Its spherical roller design accommodates misalignment, reducing wear and maintenance needs.

Built for Heavy-Duty Use: 239/500 CA/C08W507 Bearing
This bearing excels in paper mill machinery, where its high dynamic load capacity and temperature resistance are essential. The open seal design allows for easy lubrication, extending service life in dusty environments.

Automotive vs Aerospace: Applications of 239/500 CA/C08W507 Bearing
In large vehicles like trucks and buses, 239/500 CA/C08W507 Bearing is used in wheel hubs and transmissions. Its robust construction ensures stability under heavy loads, while in aerospace, it’s suited for ground support equipment.

Perfect Fit for Automation: 239/500 CA/C08W507 Bearing
For robotic arms in manufacturing, 239/500 CA/C08W507 Bearing provides smooth rotation and load handling. Its precision engineering ensures consistent performance in high-speed automation systems.
