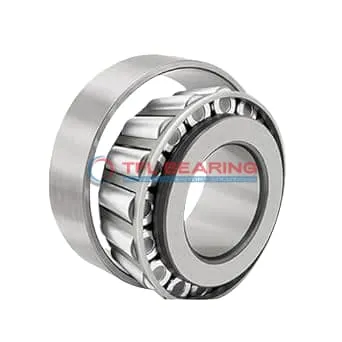

TS (Single Row Tapered Roller Bearings) (Imperial) M88036-M88010

TS (Single Row Tapered Roller Bearings) (Imperial) M88036-M88010

The M88036-M88010 is a single-row tapered roller bearing with a 1″ bore and 2.6875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 13400 lbf radially and 3250 lbf thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for automotive or industrial uses where combined radial and thrust loads are present.

Weighing just 1lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M88036-M88010
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 2.6875" x 0.875"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.44"
  • Cone Backface Backing Diameter 1.46"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.28"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.05"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M88036
  • Cup Part Number M88010
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M88000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13400 lbf
  • Static Radial Load 17400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3470 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

Performance Features of M88036-M88010 Bearing

M88036-M88010 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,400 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

How Is M88036-M88010 Bearing Engineered for Reliability?

M88036-M88010 Bearing features a tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, even under heavy stress.
Its standard radial clearance allows for smooth operation, reducing wear over time.
This bearing is interchangeable with Timken models, providing flexibility in replacements.

Built for Durability: M88036-M88010 Bearing

M88036-M88010 Bearing’s single-row construction ensures stability and efficient load distribution.
The steel cage and chrome steel rollers work together to minimise friction and noise.
With a static radial load of 17,400 lbf, it handles demanding conditions with ease.
Its ABEC-1 rating confirms consistent precision in performance.

Application

Industrial Uses of M88036-M88010 Bearing
M88036-M88010 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is M88036-M88010 Bearing Used?
You’ll often find M88036-M88010 Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a popular choice for North American vehicle models.

Built for Heavy-Duty Use: M88036-M88010 Bearing
M88036-M88010 Bearing excels in industrial conveyor systems, where its open design allows for easy lubrication and maintenance. The steel cage adds strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of M88036-M88010 Bearing
In automotive settings, M88036-M88010 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. The ABEC-1 rating ensures consistent performance across both fields.

Perfect Fit for Automation: M88036-M88010 Bearing
M88036-M88010 Bearing works well in automated machinery, such as robotic arms, where its tapered rollers provide smooth motion control. The standard radial clearance offers flexibility for various operational needs.
